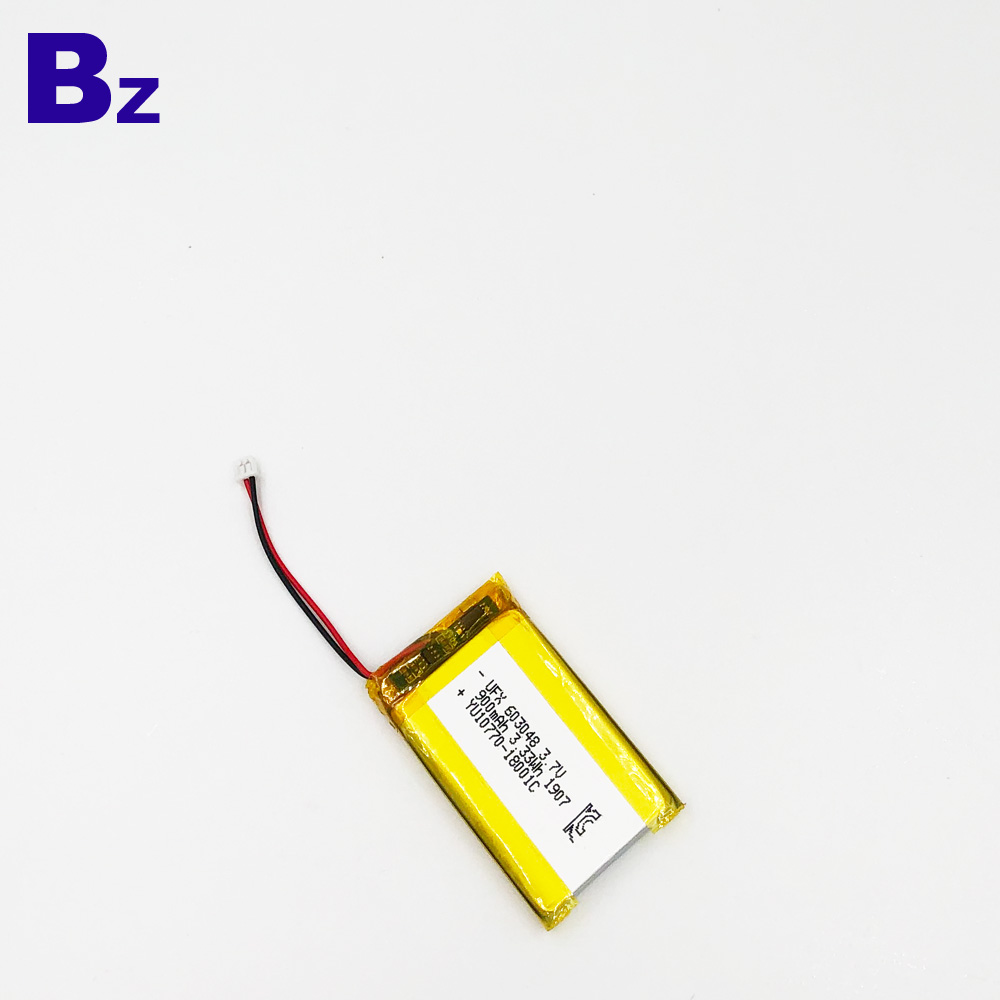

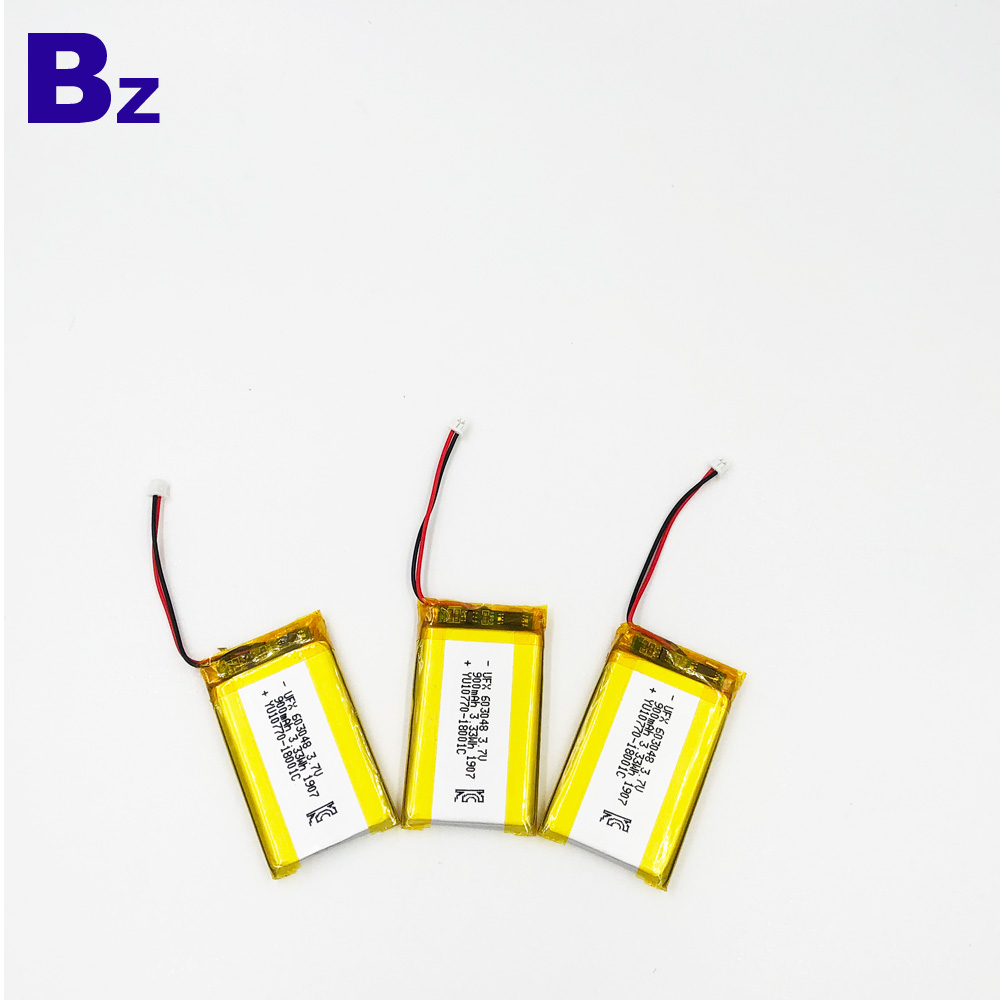

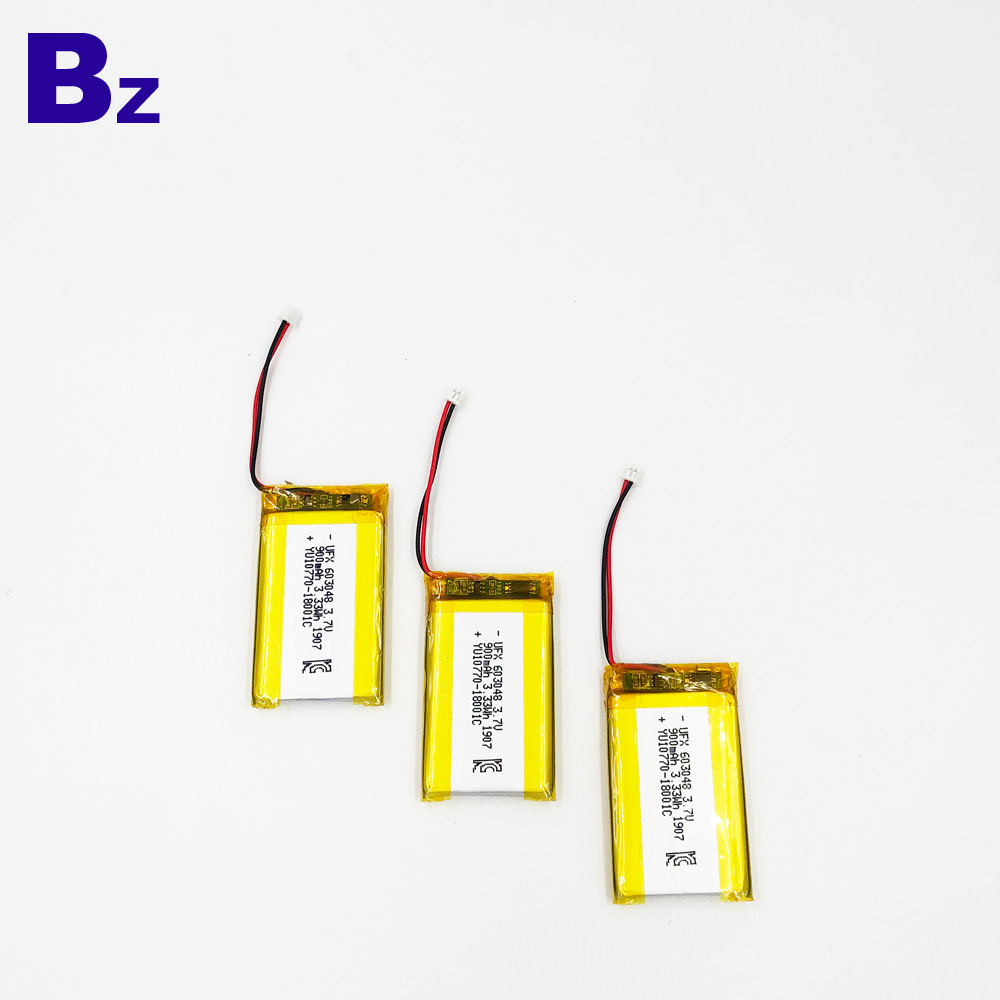

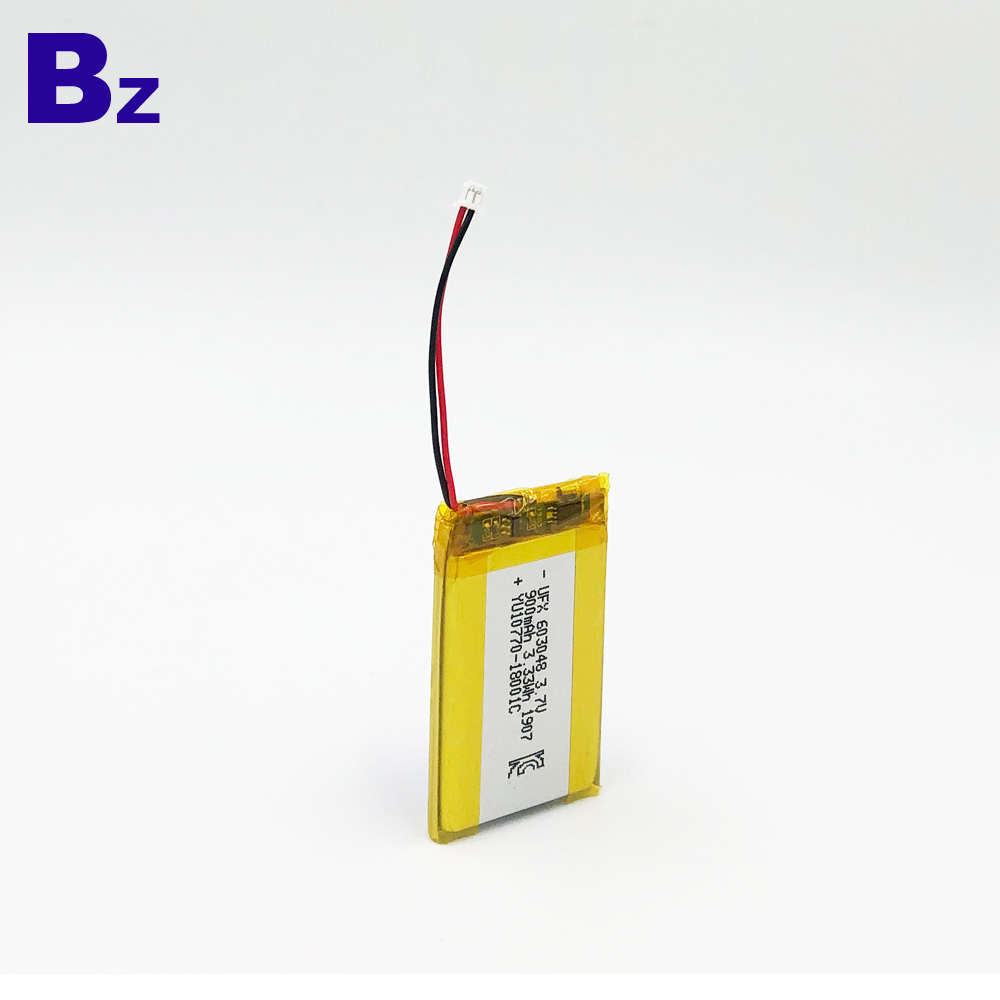

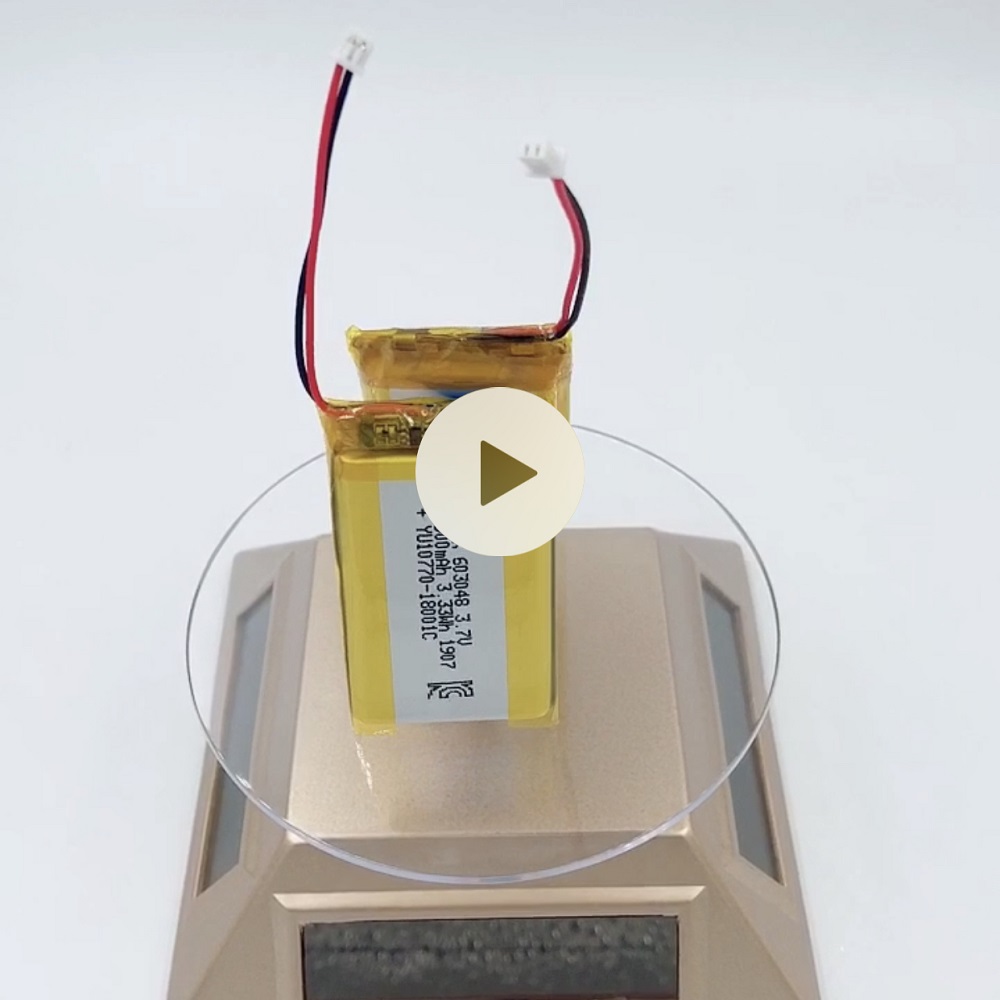

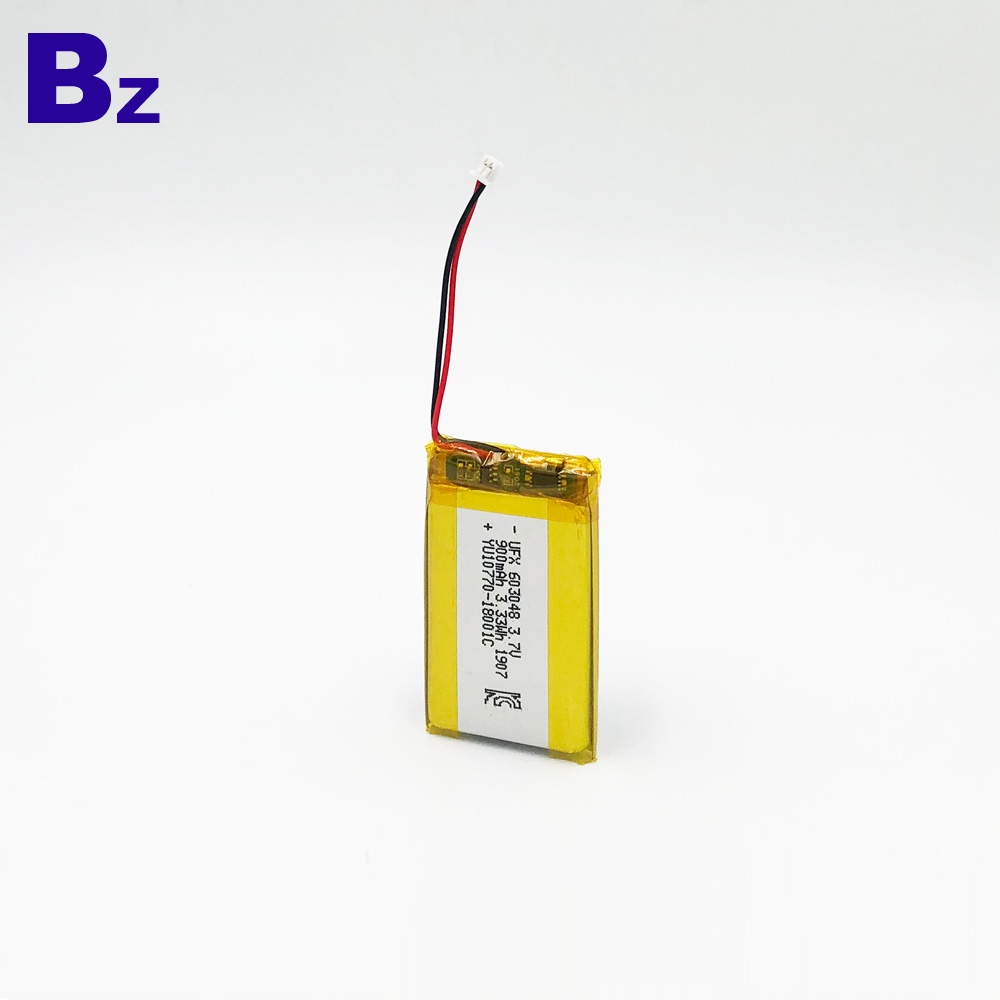

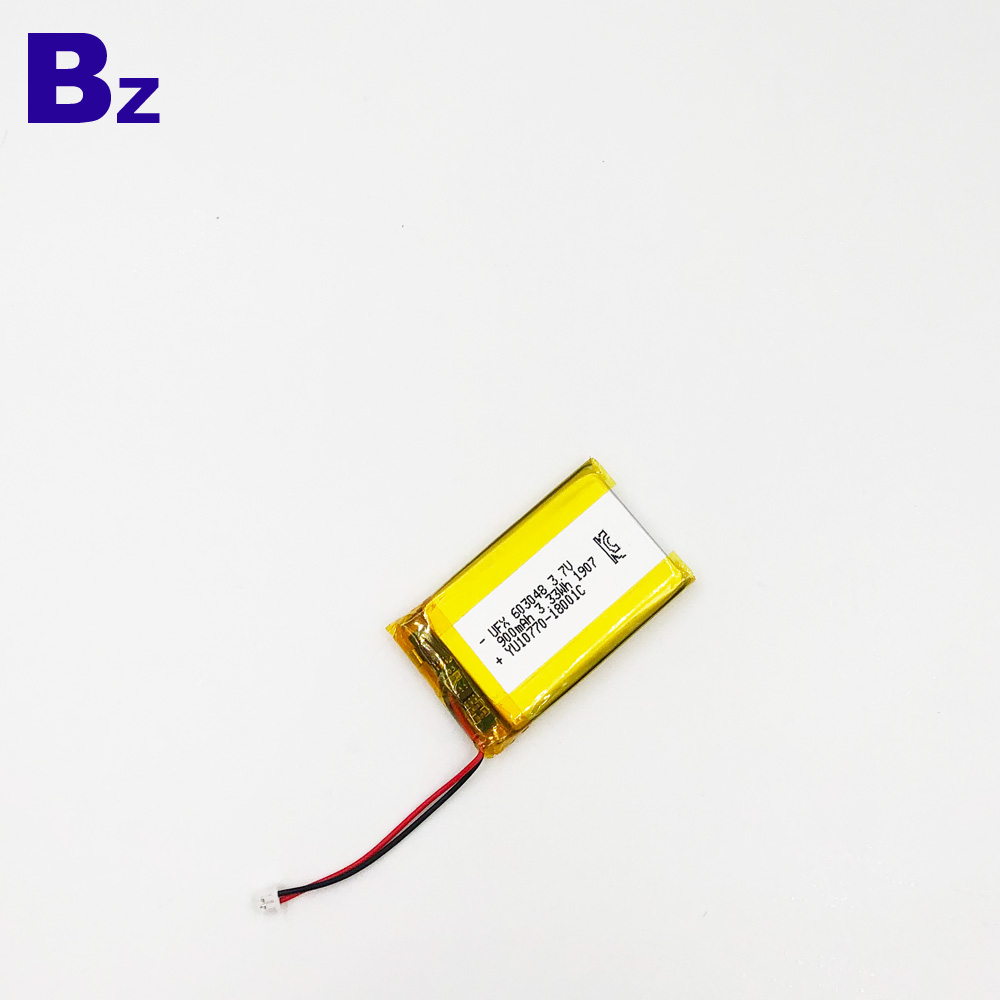

Hot-selling Lipo Battery For Digital Photo Frame UFX 603048 900mAh 3.7V Lithium Polymer Battery With KC Certification

$1.70
In stock
SKU
UFX 603048 900mAh 3.7V

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  •     Place of Origin: Guangdong, China
        Brand Name: UFX
        Model Number: 603048
        Type: Li-polymer
        Nominal Voltage: 3.7V
        Size: 6*30*50mm
        Nominal Capacity: 900mAh
        Product name: UFX 603048 Li-ion Battery
        Warranty: 1 Year
        Weight: 17g
        Cycle life: 500 Times
        Application: Digital Photo Frame Battery
        Certificate: UN38.3/CE/MSDS/ROHS/KC
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C



KC Battery For Digital Photo Frame UFX 603048 900mAh 3.7V Lithium Polymer Battery

603048 900mAh 3.7V Lithium Polymer Battery

900mAh Battery For Digital Photo Frame

3.7V Battery For Digital Photo Frame

603048 900mAh 3.7V Lithium Polymer Battery

3.7V Lithium Polymer Battery

900mAh Li-Polymer Battery With KC Certification

Li-Polymer Battery With KC Certification



Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

920mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

900mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤115mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max50mm

Width: max30mm
Thickness: max6mm

Initial  Dimension
