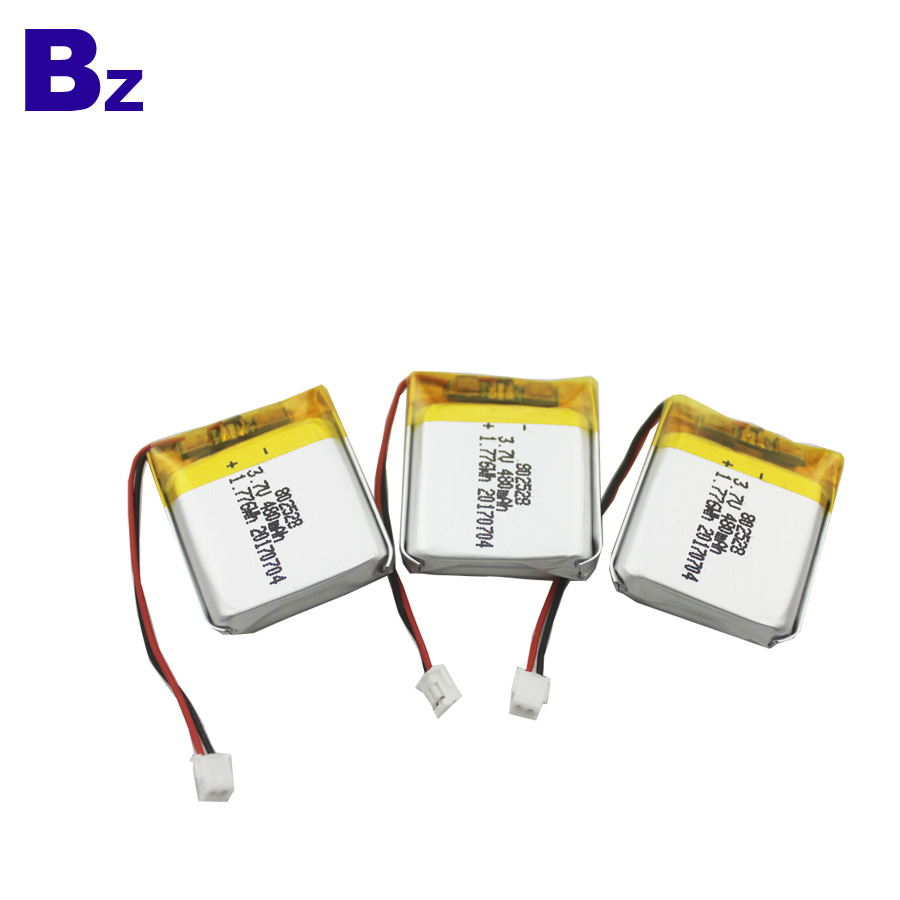

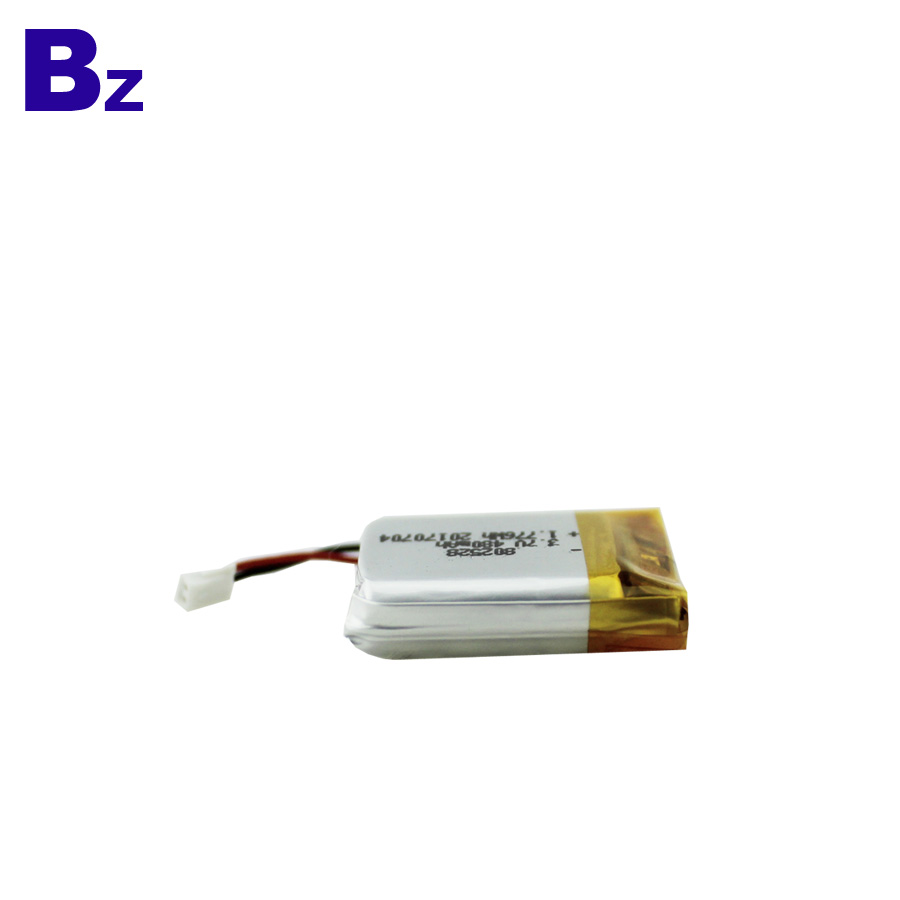

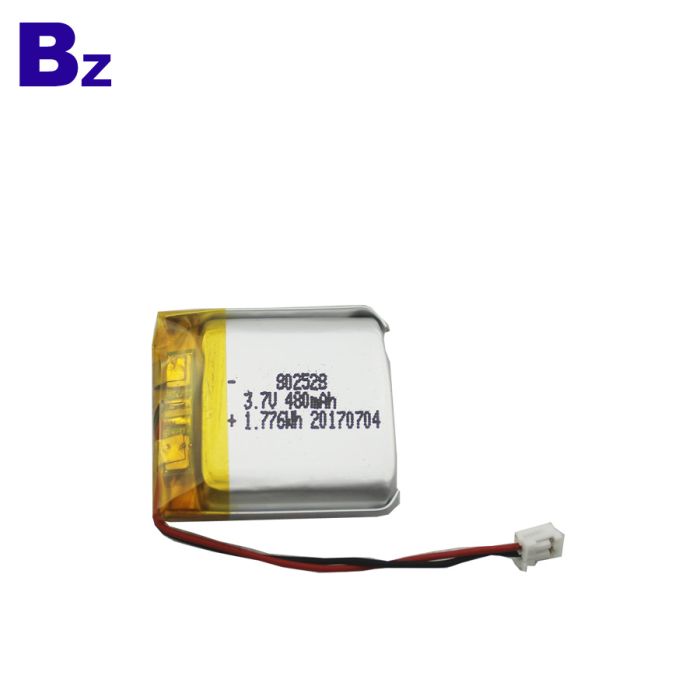

China Lithium Battery Supplier Customized UL Certification Battery For Digital Products BZ 802528 480mAh 3.7V LiPo Battery with KC Certificate

$1.35
In stock
SKU
BZ 802528 480mAh 3.7V

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

    Place of Origin: Guangdong, China
    Brand Name: BZ
    Model Number: 802528
    Type: Li-polymer
    Nominal Voltage: 3.6V
    Size: 8*25*30mm
    Nominal Capacity: 480mAh
    Product name: 802528 li-ion battery
    Warranty: 1 Year
    Weight: 15g
    Cycle life: 500 Times
    Capacity: 480mAh
    Voltage: 3.7V
    Application: Digital Products
    Certificate: CE/RoHS/UN38.3/MSDS/UL
    Payment: Paypal.TT.Escrow.Western Union
    Max charge current: 1C

li-ion battery





802528 480mAh 3.7V LiPo Battery



480mAh 3.7V LiPo Battery



480mAh 3.7V LiPo Battery with KC Certificate

UL Certification Battery For Digital Products

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

490mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

480mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤50mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max30mm

Width: max25mm
Thickness: max8mm

Initial  Dimension

Discharge Rate Characteristicsli-ion battery
