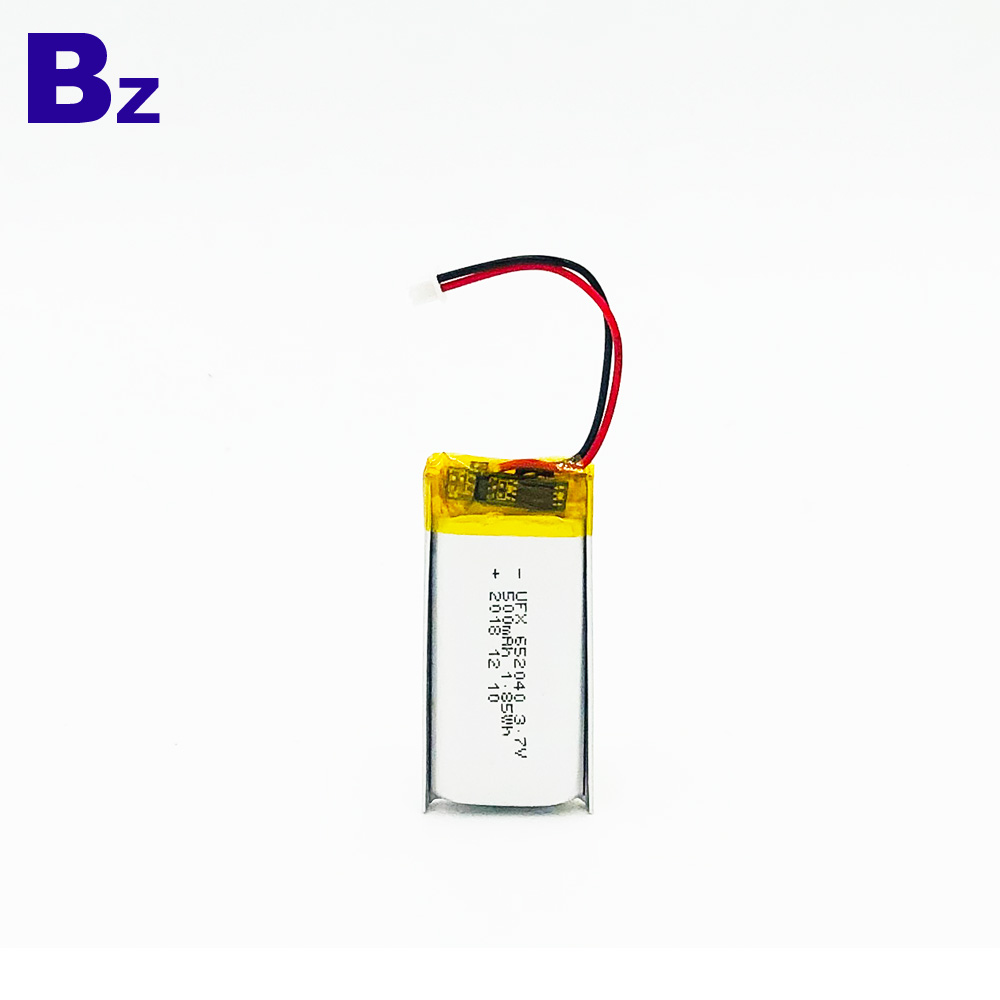

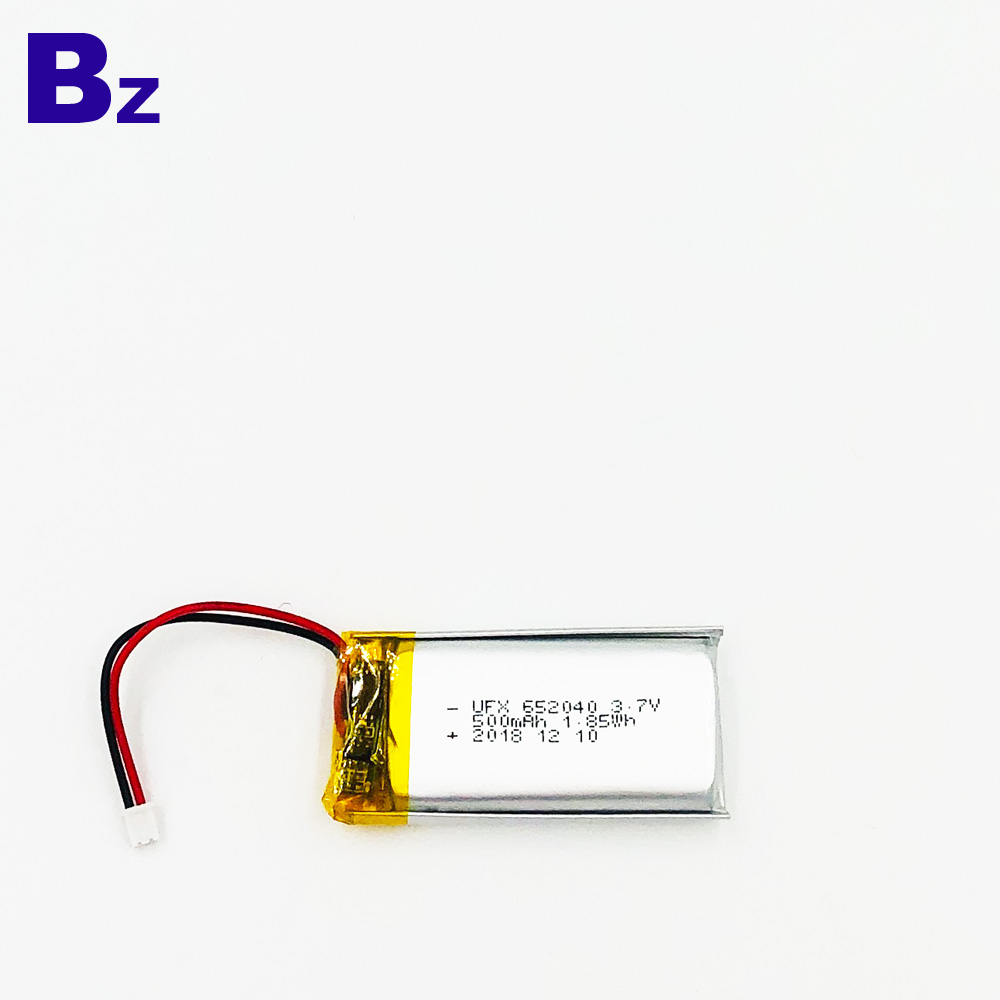

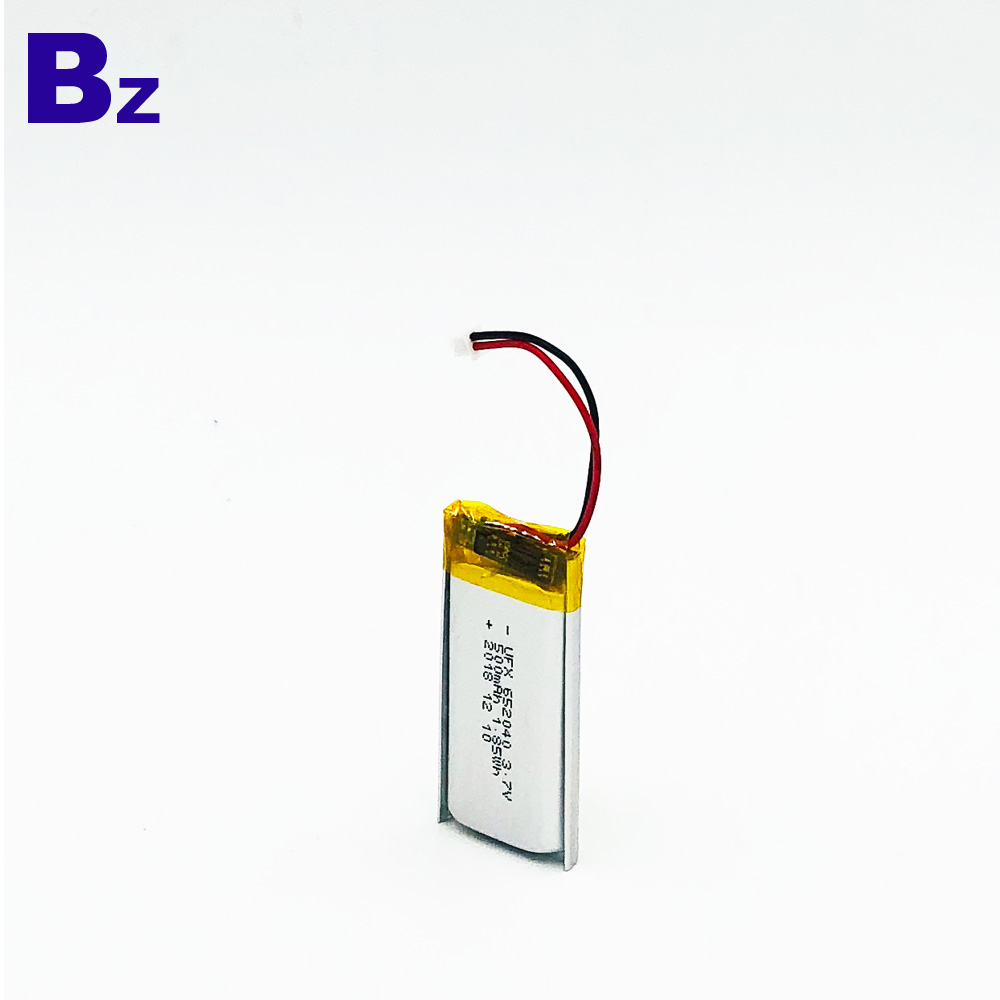

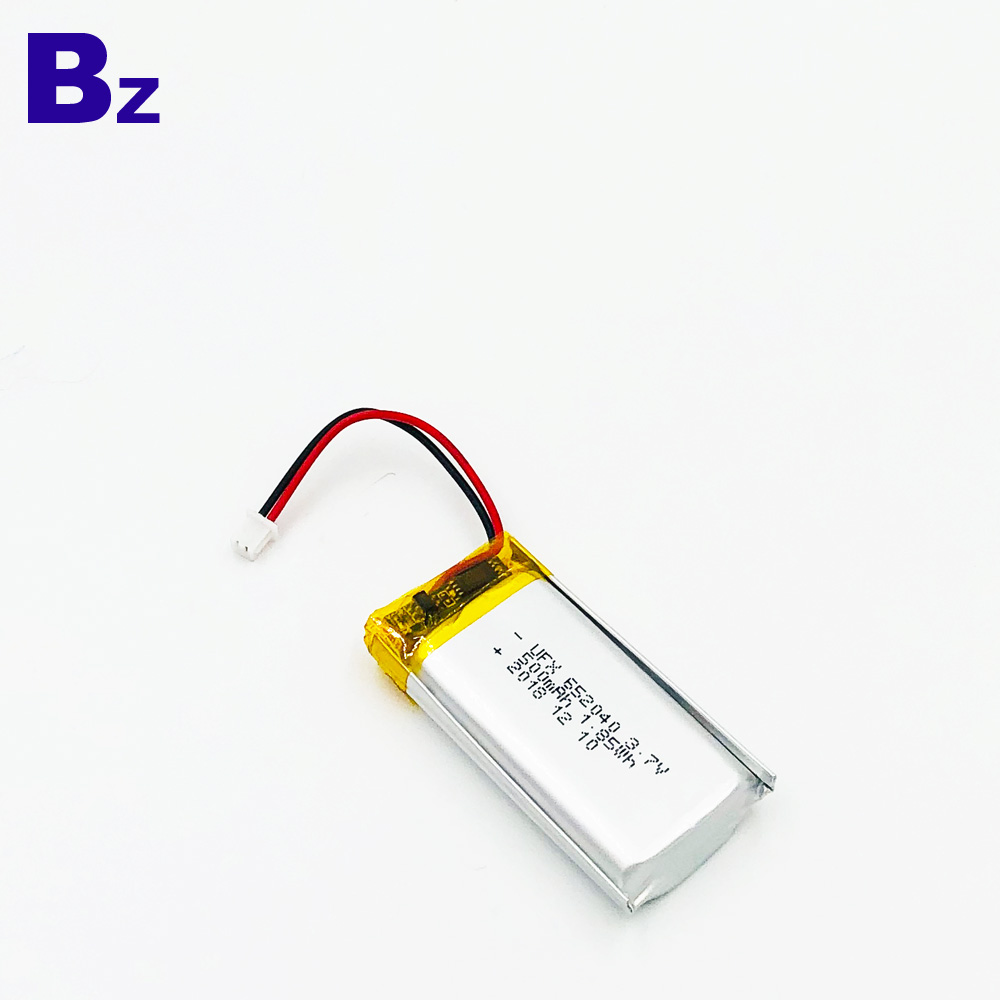

High Discharge Rate Lipo Battery For Massage Stick UFX 652040 500mAh 3.7V Li-Polymer Battery With Wire And Plug

$1.20
In stock
SKU
UFX 652040

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  •     Place of Origin: Guangdong, China
        Brand Name: UFX
        Model Number: 652040
        Type: Li-polymer
        Nominal Voltage: 3.7V
        Size: 6.5*20*42mm
        Nominal Capacity: 500mAh
        Product name: UFX 652040 Li-ion Battery
        Warranty: 1 Year
        Weight: 9g
        Cycle life: 500 Times
        Application: Massage Stick
        Certificate: UN38.3/CE/MSDS/ROHS
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C

li-ion battery



500mAh Lipo Battery For Massage Stick

652040 500mAh 3.7V Li-Polymer Battery

500mAh Lipo Battery With Wire And Plug

 Lipo Battery With Wire And Plug

Battery For Massage Stick

Lipo Battery With Wire And Plug

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

520mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

500mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤175mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max42mm

Width: max20mm
Thickness: max6.5mm

Initial  Dimension
