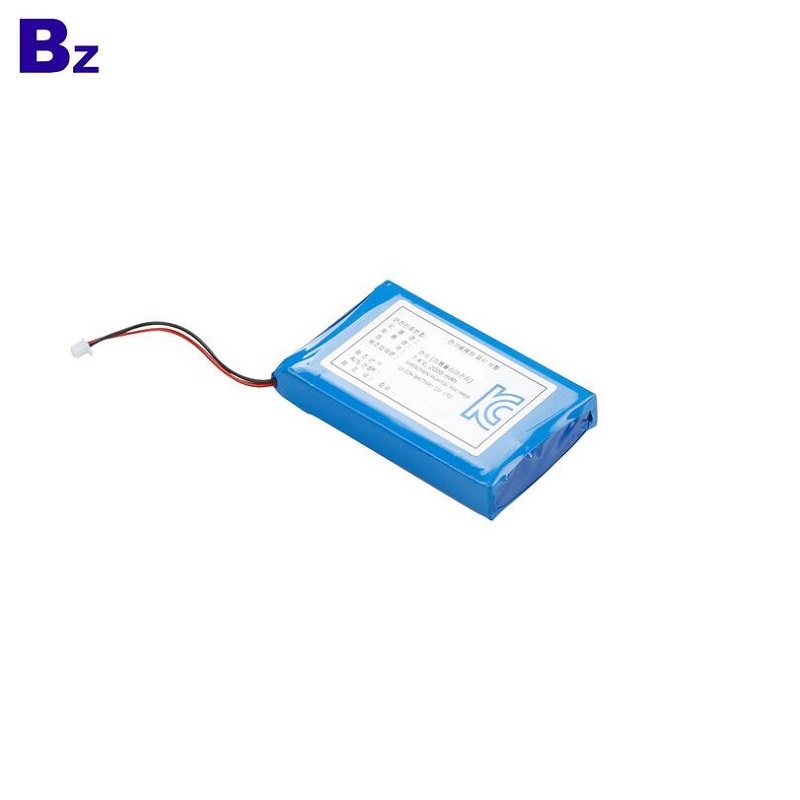

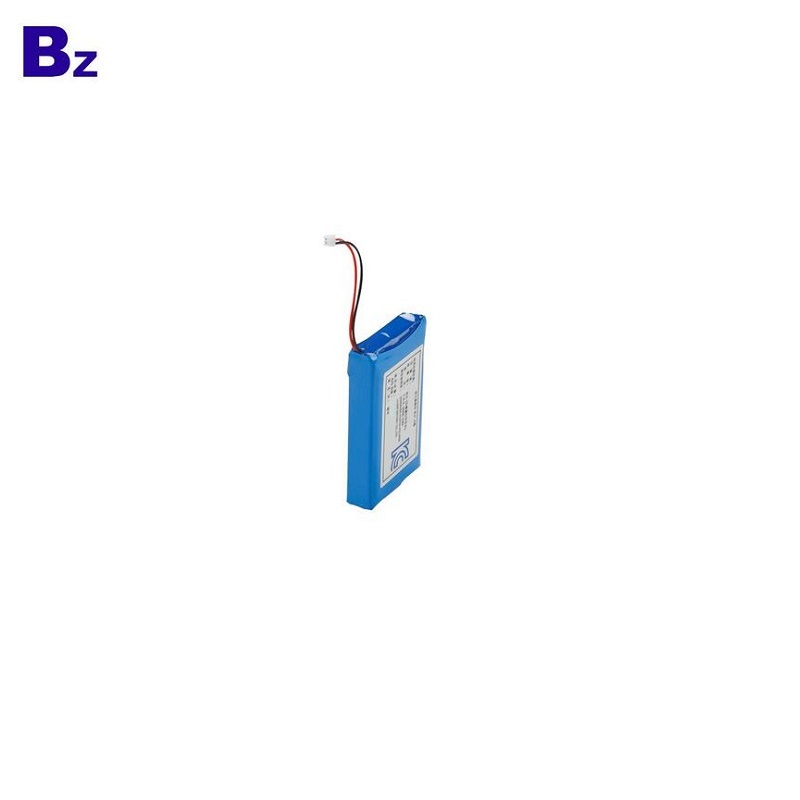

China Lithium Battery Manufacturer Customize Battery For Toys BZ 654165 7.4V 2000mAh Rechargeable Lipo Battery
$5.50
In stock
SKU
BZ 654165 7.4V
FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !
- Place of Origin: Guangdong, China
- Brand Name: BZ
- Model Number: 654165
- Type: Li-Ion
- Nominal Voltage: 3.7V
- Size: 13*41*68mm
- Nominal Capacity: 2000mAh
- Product name: 654165
- Warranty: 1 Year
- Weight: 76g
- Cycle life: 500 Times
- Capacity: 2000mah
- Voltage: 7.4V
- Application: for medical battery
- Certificate: CE/RoHS/UN38.3/MSDS
- Payment: Paypal.TT.Escrow.Western Union
Product Parameters
| No. | Item | General Parameter | Remark | |
| 1 | Rated Capacity | Typical | 1610mAh | Standard discharge(0.2C C5A) after Standard charge |
| Minimum | 1600mAh | |||
| 2 | Nominal Voltage | 7.4V | Mean Operation Voltage | |
| 3 | Voltage at end of | 6.0V | Discharge Cut-off Voltage | |
| Discharge | ||||
| 4 | Charging Voltage | 8.4±0.03V | ||
| 5 | Internal Impedance | ≤80mΩ | Internal resistance measured at AC 1KHZ after 50% charge | |
| The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times | ||||
| 6 | Standard charge | Constant Current 0.2C5A | Charge time : Approx 6h | |
| Constant Voltage 8.4V | ||||
| 0.01 C5A cut-off | ||||
| 7 | Standard discharge | Constant current 0.2 C5A | ||
| end voltage 6.0V | ||||
| 8 | Fast charge | Constant Current 0.5C5A | Charge time : Approx 2.5h | |
| Constant Voltage 8.4V | ||||
| 0.01 C5A cut-off | ||||
| 9 | Fast discharge | Constant current 0.5C5A | ||
| end voltage 6.0V | ||||
| 10 | Maximum Continuous Charge Current | 1 C5A | ||
| 11 | Maximum Continuous Discharge Current | 1 C5A | ||
| 12 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H. | |
| Bare Cell | ||||
| Discharge: -20~60℃ | ||||
| 13 | Storage Temperature Range | Less than 1 year: -20~25℃ | 60±25%R.H. | |
| at the shipment state | ||||
| less than 3 months: -20~40℃ | ||||
| 14 | Pack Dimension |
High: max68mm Width: max41mm Thickness: max13mm |
Initial Dimension | |
