China Lithium Battery Manufacturer Customized Battery for Bluetooth Speaker UFX 403035 400mAh 3.7V Rechargeable Li-ion Battery

$1.15
In stock
SKU
UXF 403035

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  • Place of Origin: Guangdong, China
  • Brand Name: UFX
  • Model Number: 403035
  • Type: Li-Ion
  • Nominal Voltage: 3.6V
  • Size: 4*30*37mm
  • Nominal Capacity: 400mAh
  • Product name: 403035 li-ion battery
  • Warranty: 1 Year
  • Weight: 8
  • Cycle life: 500 Times
  • Capacity: 400mah
  • Voltage: 3.7V
  • Application: Digital Products
  • Certificate: CE/RoHS/UN38.3/MSDS
  • Payment: Paypal.TT.Escrow.Western Union
  • Max charge current: 1C



Lipo Battery for Bluetooth Speaker BZ 403035 400mAh 3.7V

Lipo Battery for Bluetooth Speaker BZ 403035 400mAh 3.7V

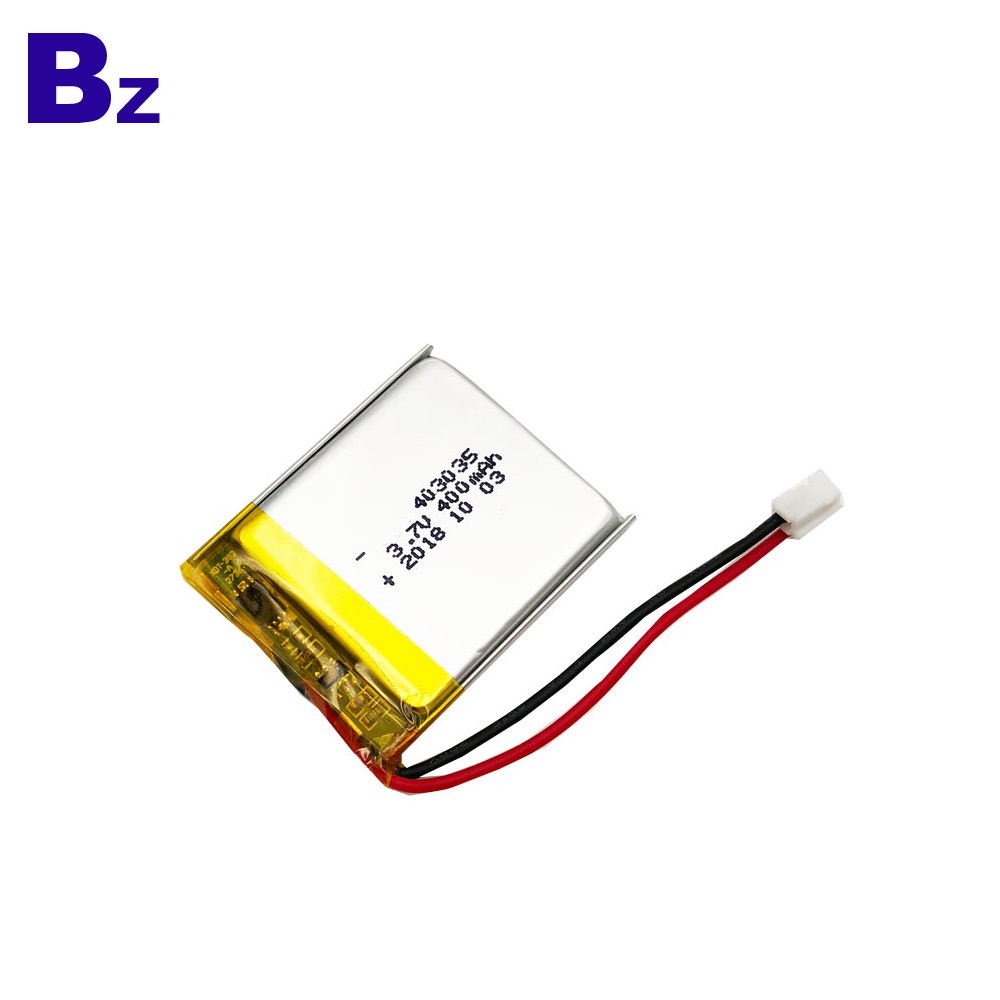

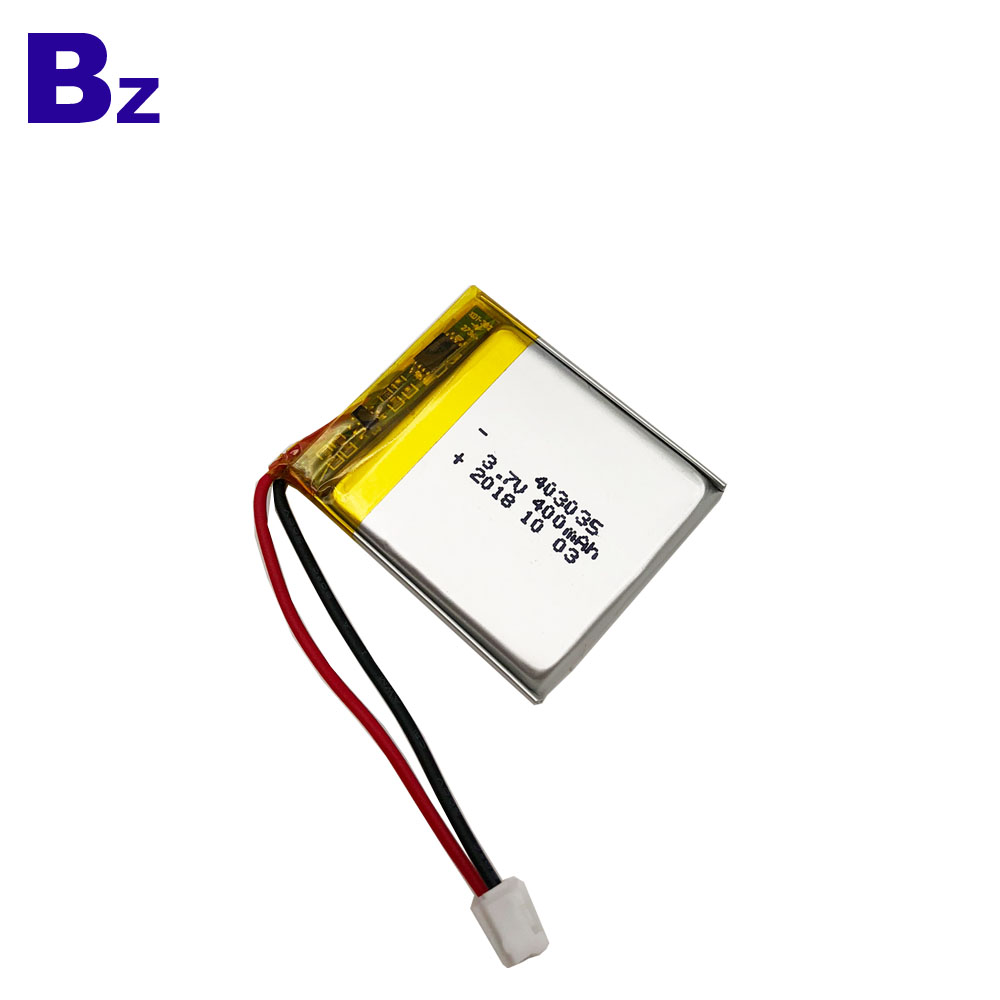

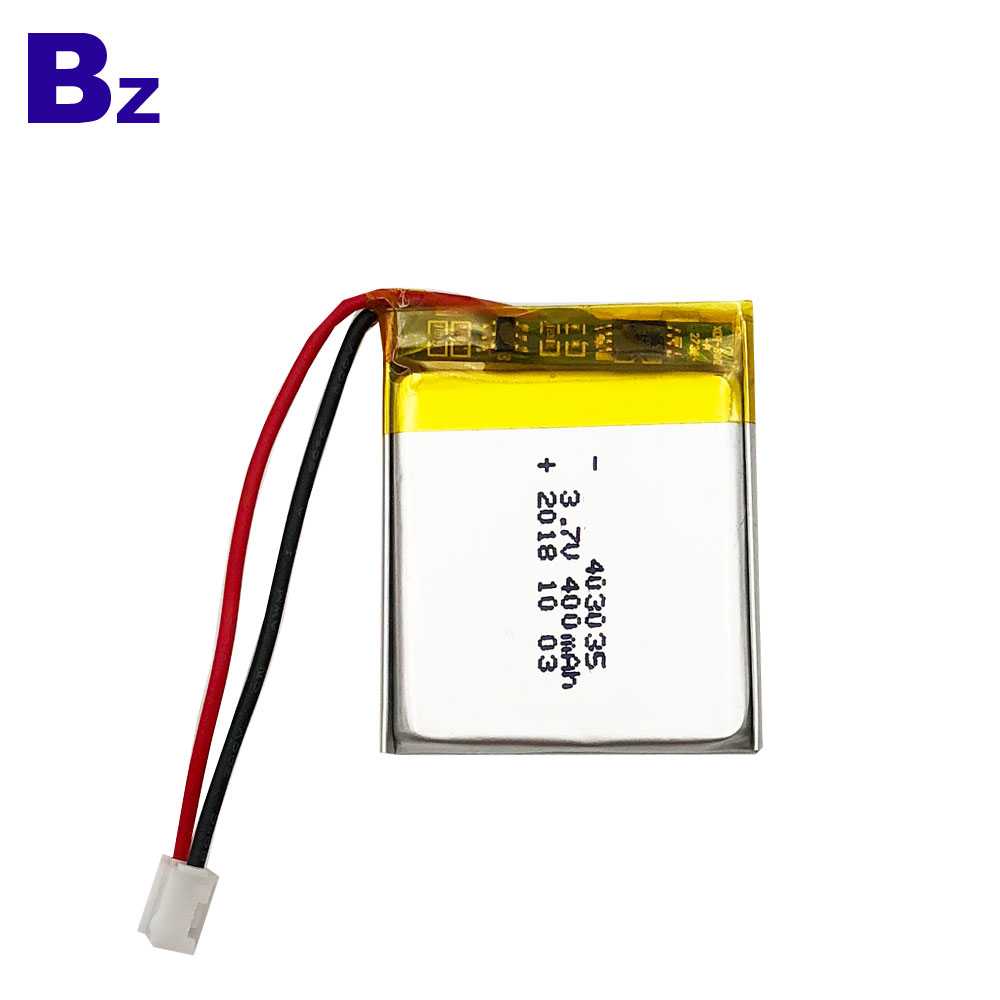

403035 400mah 3.7V Rechargeable Li-ion Battery

403035 400mah 3.7V Rechargeable Li-ion Battery

Lipo Battery for Bluetooth Speaker BZ 403035 400mAh 3.7V

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

410mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

400mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤120mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max37mm

Width: max30mm
Thickness: max4mm

Initial  Dimension



Discharge Rate Characteristicsli-ion battery

lipo battery manufacturerLi-po battery Factory

18650 battery manufacturer

lipo battery shipping
