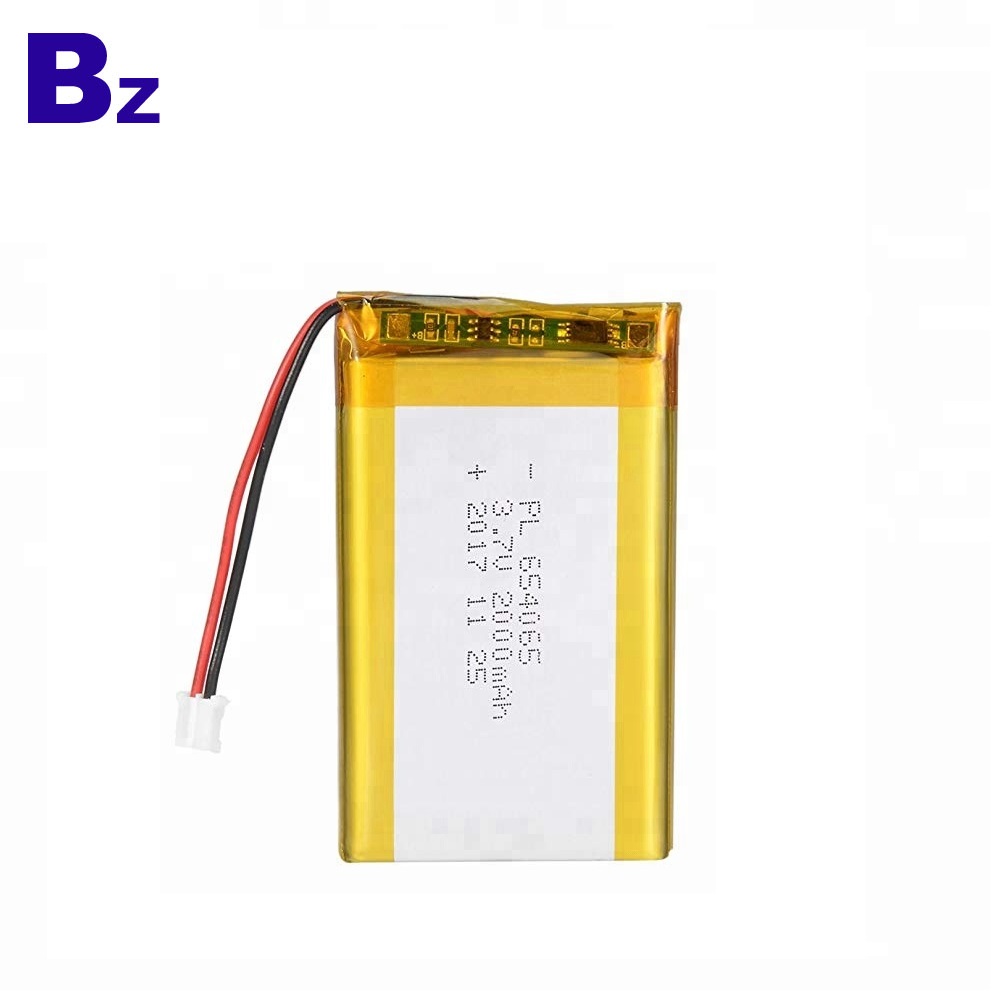

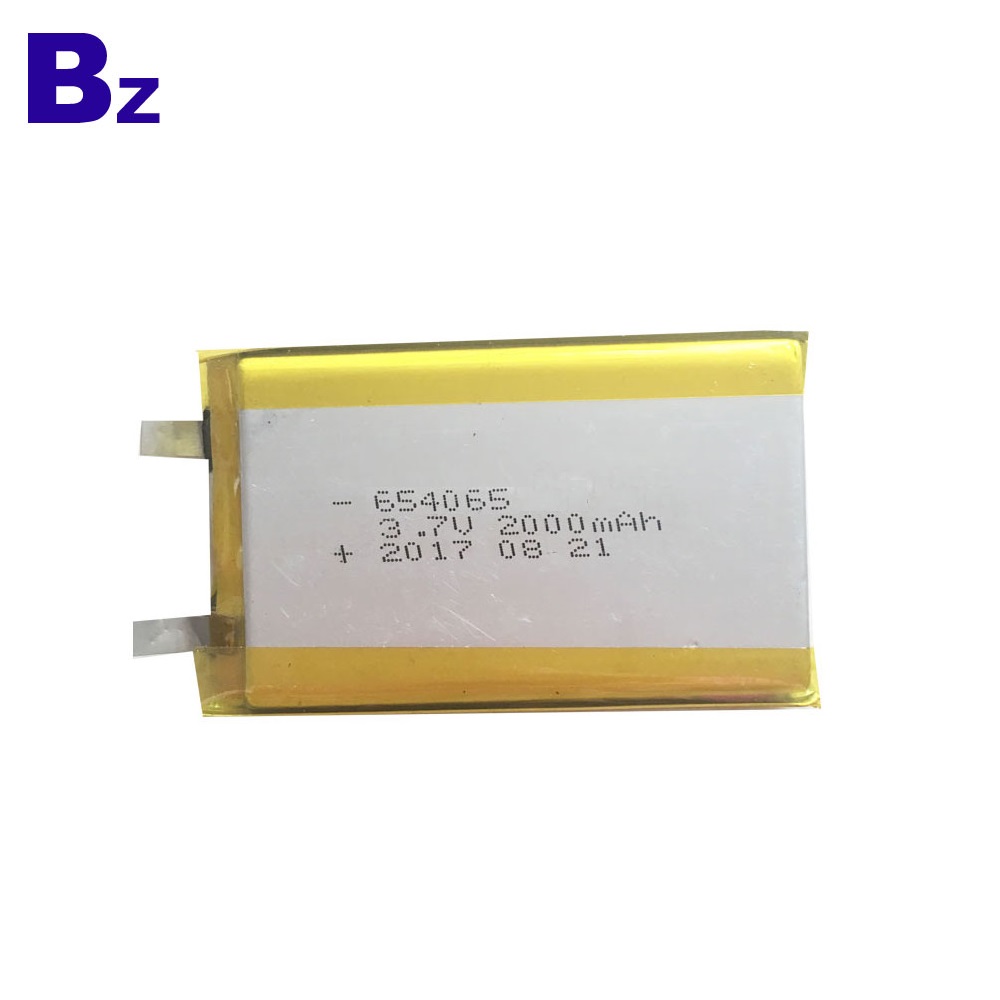

Lithium Battery Factory Custom UL Certification Battery for GPS Devices BZ 654065 3.7V 2000mAh Lipo Battery with KC Certificate

$2.75
In stock
SKU
BZ 654065

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for order li-ion battery !

  •     Place of Origin: Guangdong, China
        Brand Name: BZ
        Model Number: 654065
        Type: Li-polymer
        Nominal Voltage: 3.7V
        Size: 6.5*40*67mm
        Nominal Capacity: 2000mAh
        Product name: BZ 654065 Li-ion Battery
        Warranty: 1 Year
        Weight: 35g
        Cycle life: 500 Times
        Application: Battery for GPS Devices
        Certificate: CE/RoHS/UN38.3/MSDS/KC/UL
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C

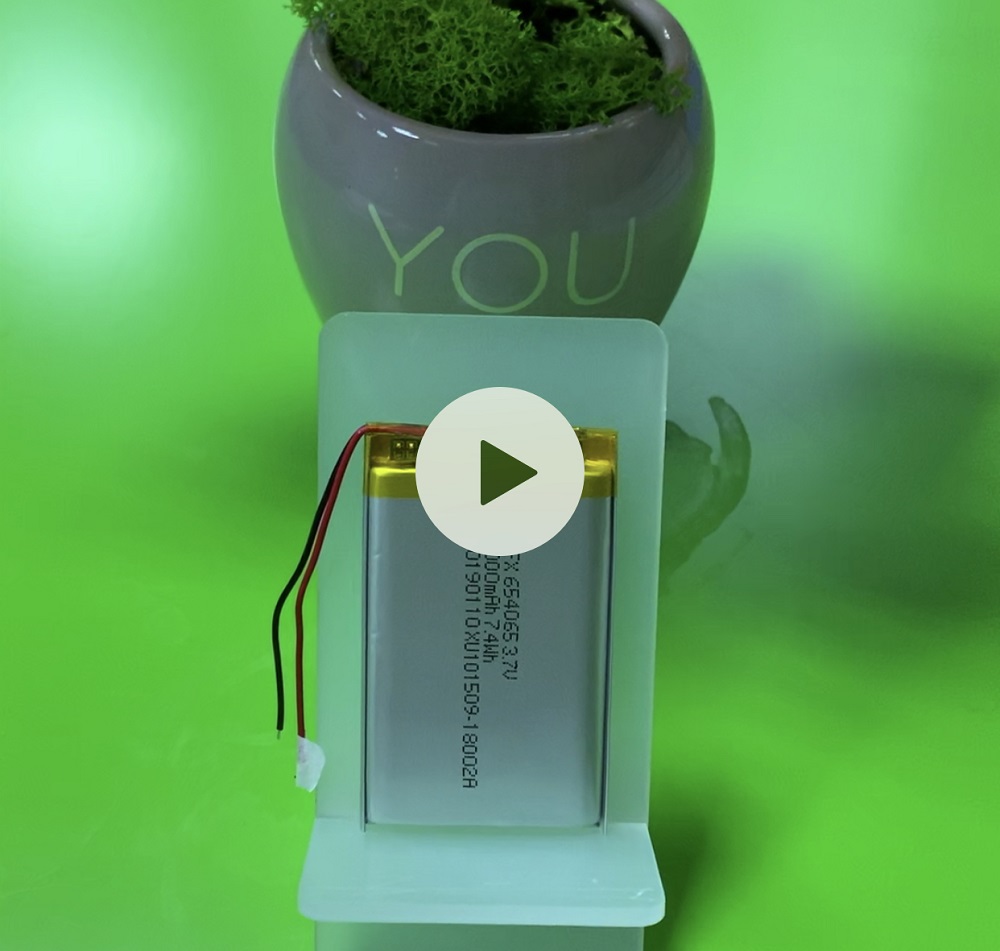

Battery for GPS Devices BZ 654065 3.7V 2000mAh Lipo Battery with KC UL Certificate

654065 3.7V 2000mAh Lipo Battery with KC Certificate



Lithium Battery

Lithium Battery

Lipo Battery



Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

2050mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

2000mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤30mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

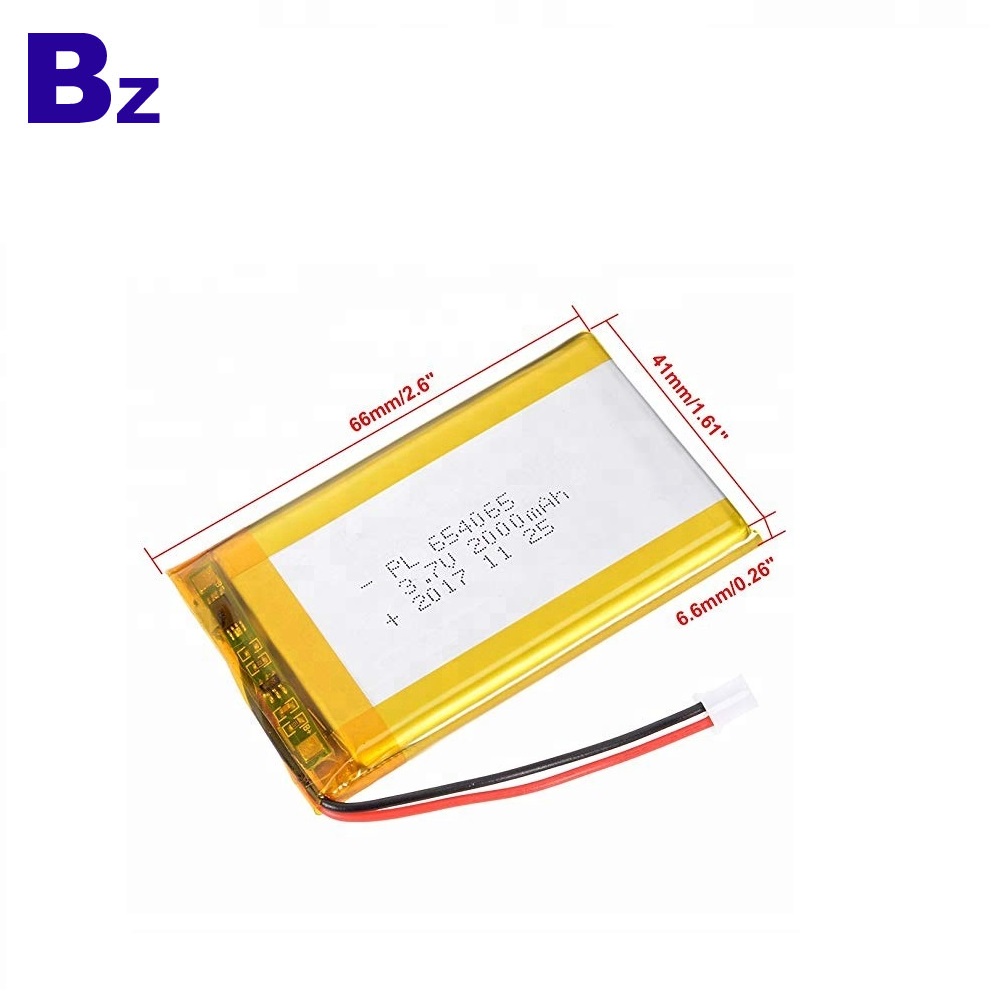

Pack  Dimension

High: max67mm

Width: max40mm
Thickness: max6.5mm

Initial  Dimension



Discharge Rate Characteristicsli-ion battery

lipo battery manufacturerLi-po battery Factory
