Polymer Battery Manufacturer Supply High Quality Power Bank Battery BZ 604096 3.7V 3000mAh Lithium-ion Cell

$3.70
In stock
SKU
BZ 604096 3.7V 3000mAh

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for the order !

  •     Brand Name: BZ
        Model Number: 604096

        Type: Li-polymer
        Nominal Voltage: 3.7V
        Size:6*40*98mm
        Nominal Capacity:3000
    mAh
        Product name: 604096 Li-ion battery
        Warranty: 1 Year
        Weight: 54g
        Cycle life: 500 Times
        Application: Power Bank Battery
        Certificate: RoHS/MSDS
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C

batteries_manufacturer

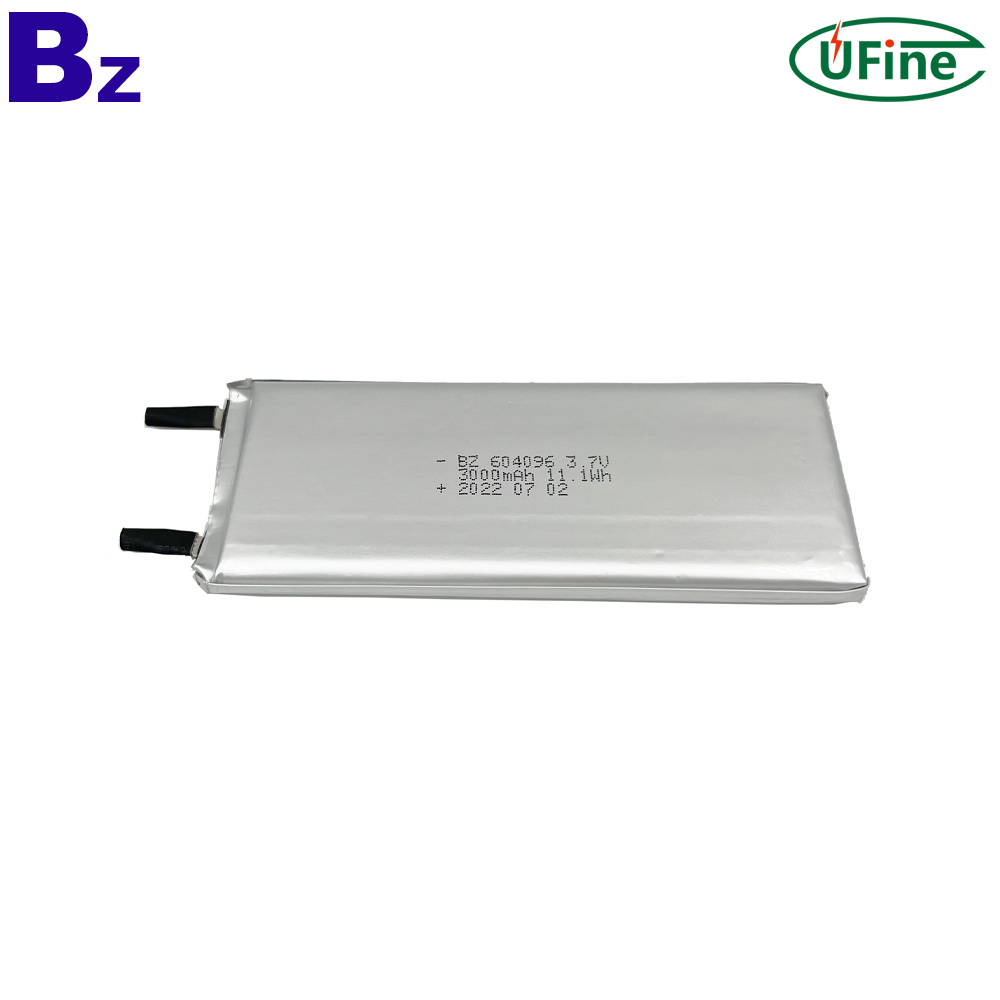

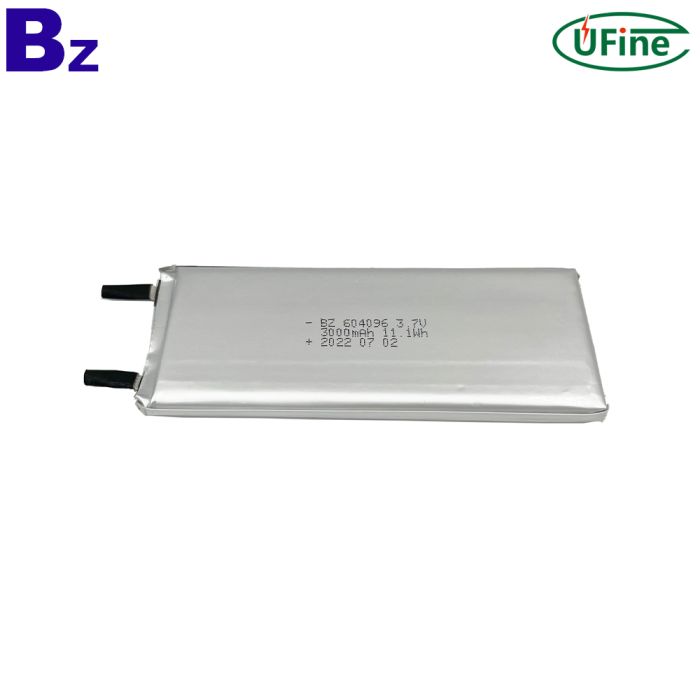

604096_3.7V_3000mAh_Lithium-ion_Cell-1-

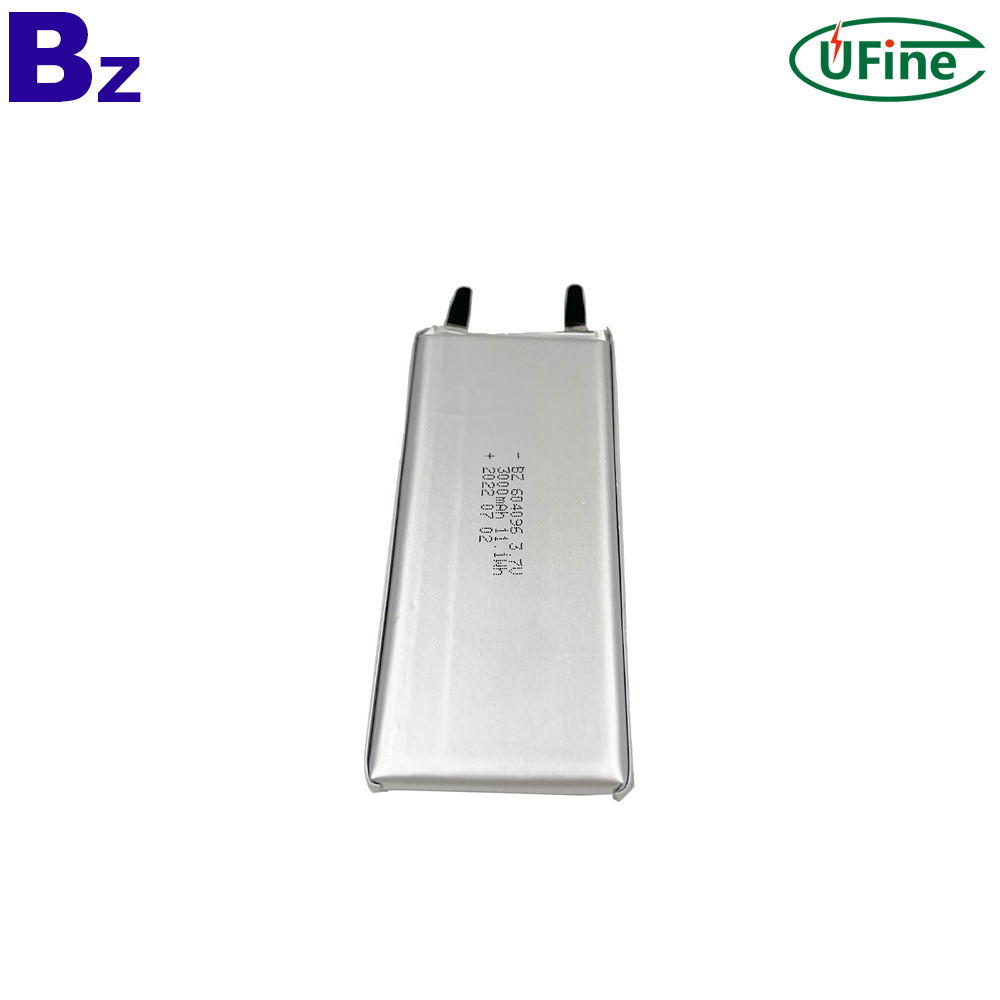

604096_3.7V_3000mAh_Lithium-ion_Cell-2-

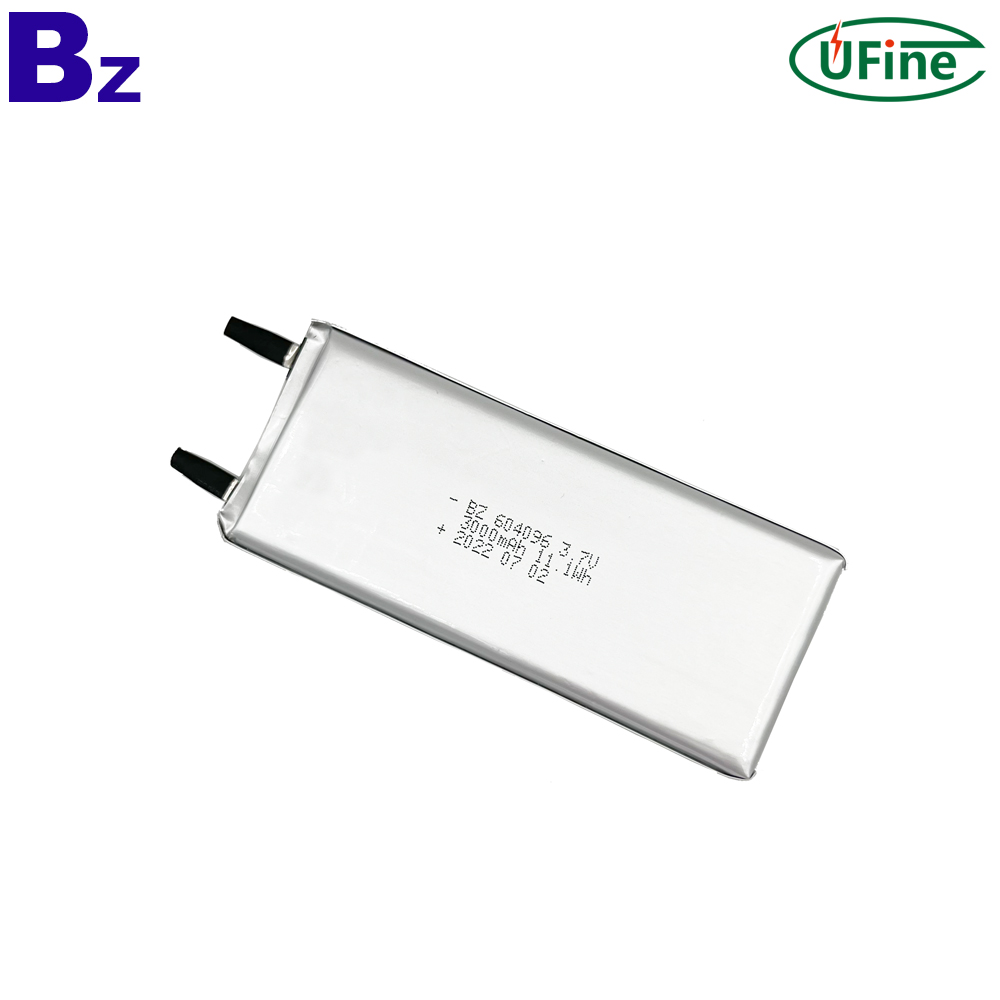

604096_3.7V_3000mAh_Lithium-ion_Cell-3-

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

3000mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

3000mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤80mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1 C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max98mm

Width: max40mm

Thickness:max6mm

Initial  Dimension



Discharge Rate Characteristicsli-ion battery
