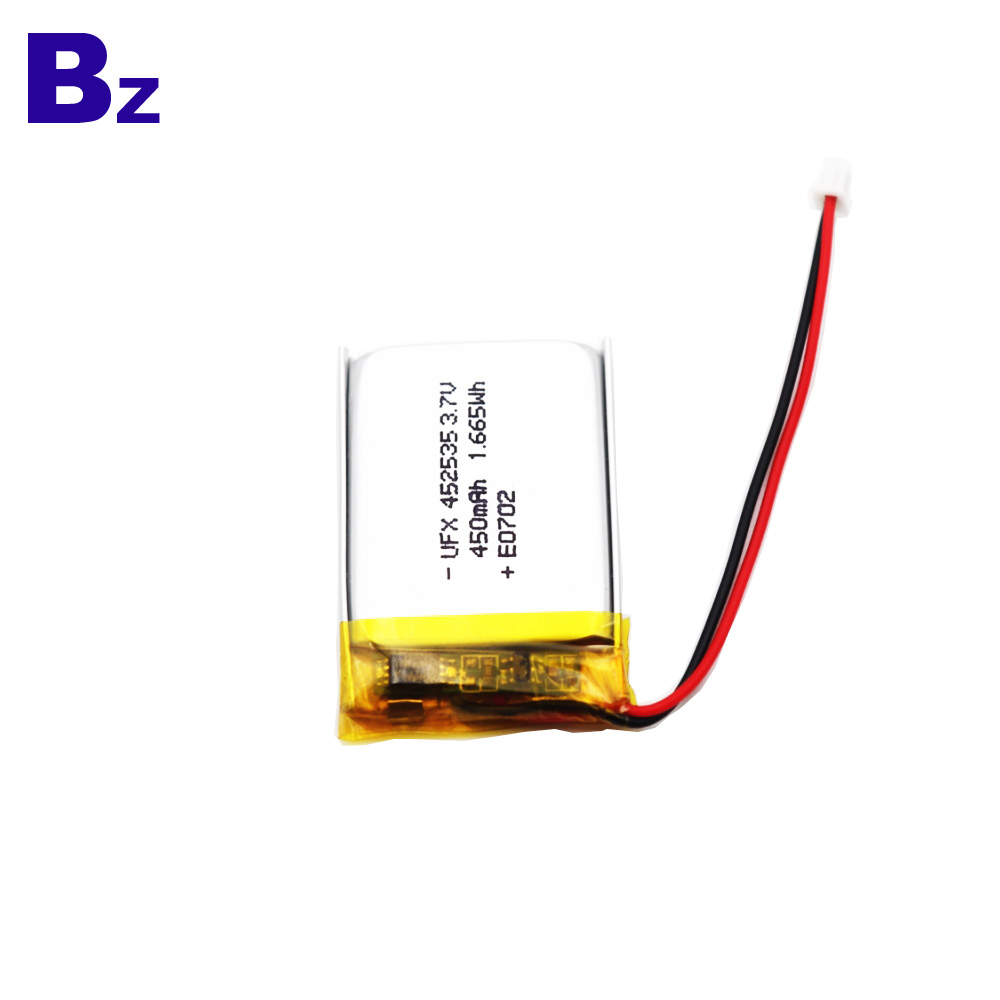

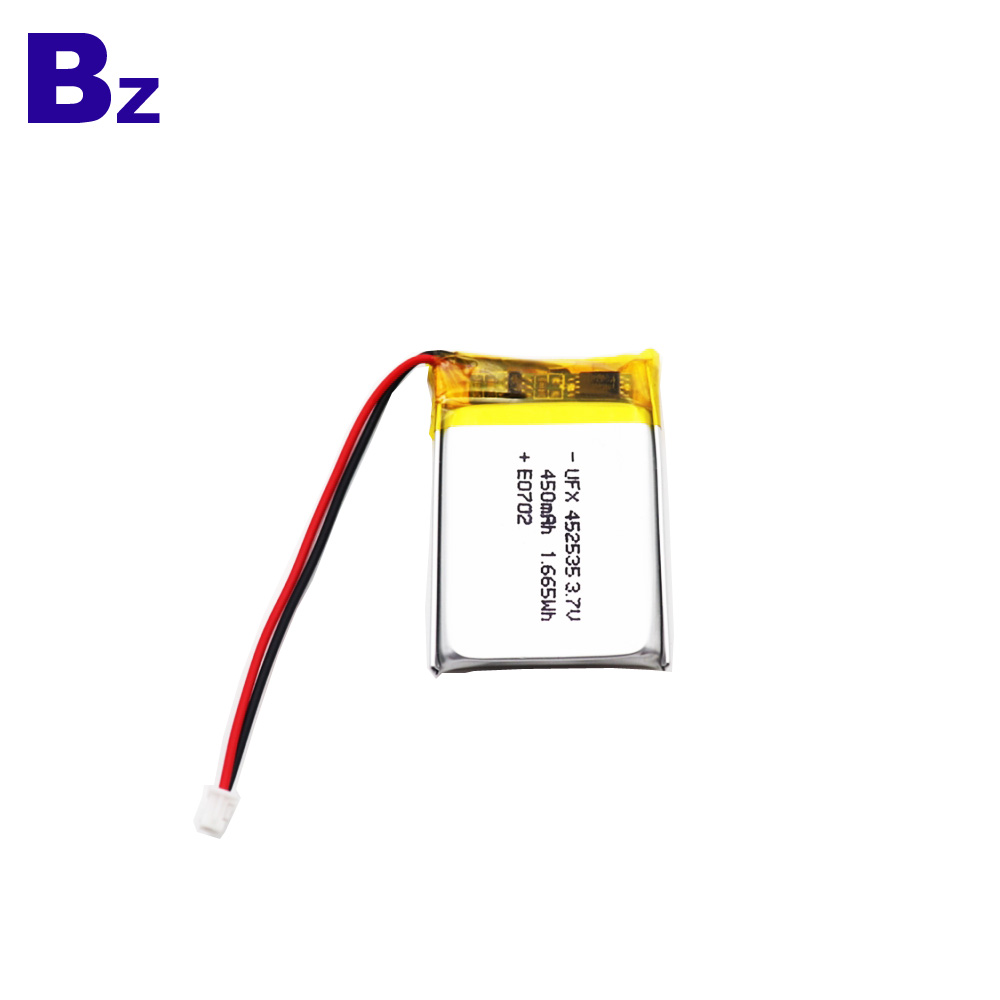

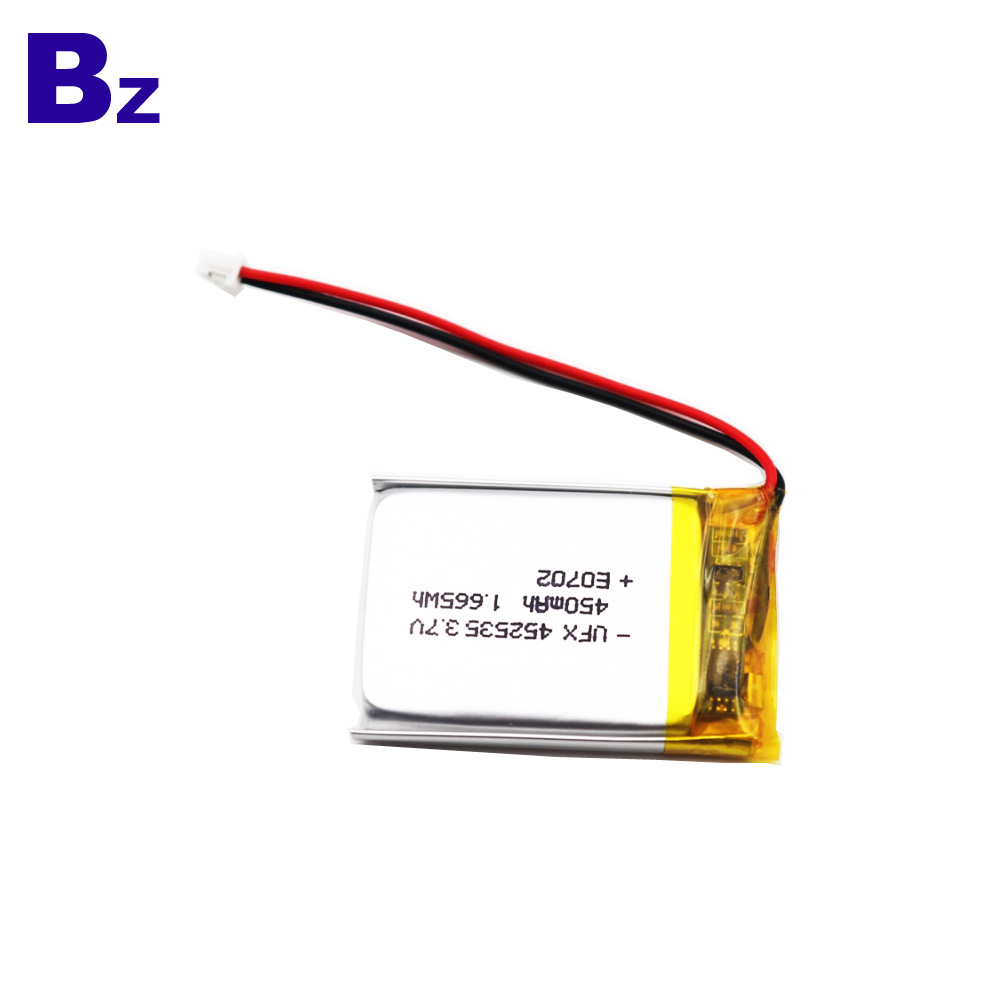

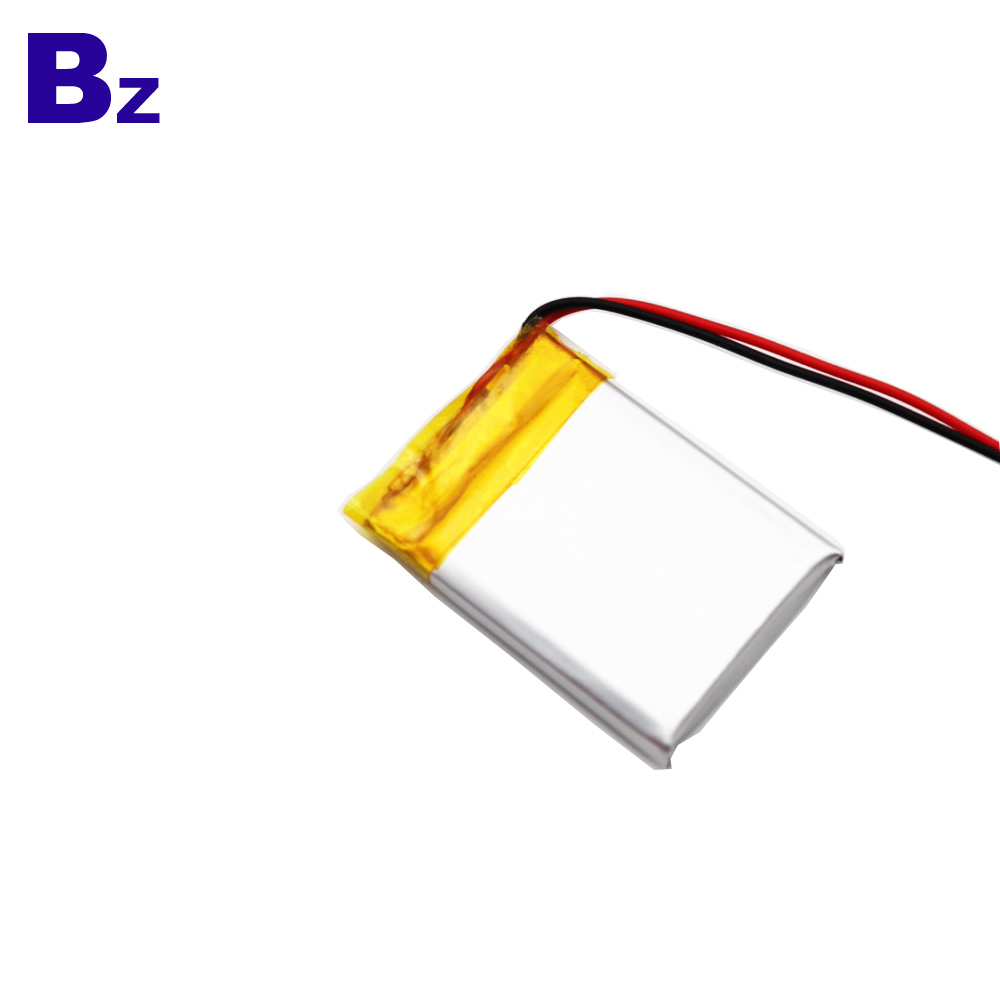

Factory Customized Lipo Battery For Monitor Device UFX 452535 450mAh 3.7V Li Polymer Battery With Wire And Plug

$1.00
In stock
SKU
UFX 452535

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  •     Place of Origin: Guangdong, China
        Brand Name: UFX
        Model Number: 452535
        Type: Li-polymer
        Nominal Voltage: 3.7V
        Size: 4.5*25*37mm
        Nominal Capacity: 450mAh
        Product name: UFX 452535 Li-ion Battery
        Warranty: 1 Year
        Weight: 7g
        Cycle life: 500 Times
        Application: Monitor Device
        Certificate: UN38.3/CE/MSDS/ROHS
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C

li-ion battery



450mAh Lipo Battery For Monitor Device

452535 450mAh 3.7V Li Polymer Battery

450mAh Li Polymer Battery With Wire And Plug

450mAh Li Polymer Battery



Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

480mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

450mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤195mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max37mm

Width: max25mm
Thickness: max4.5mm

Initial  Dimension

Discharge Rate Characteristicsli-ion battery

lipo battery manufacturerLi-po battery Factory

18650 battery manufacturer

lipo battery shipping
