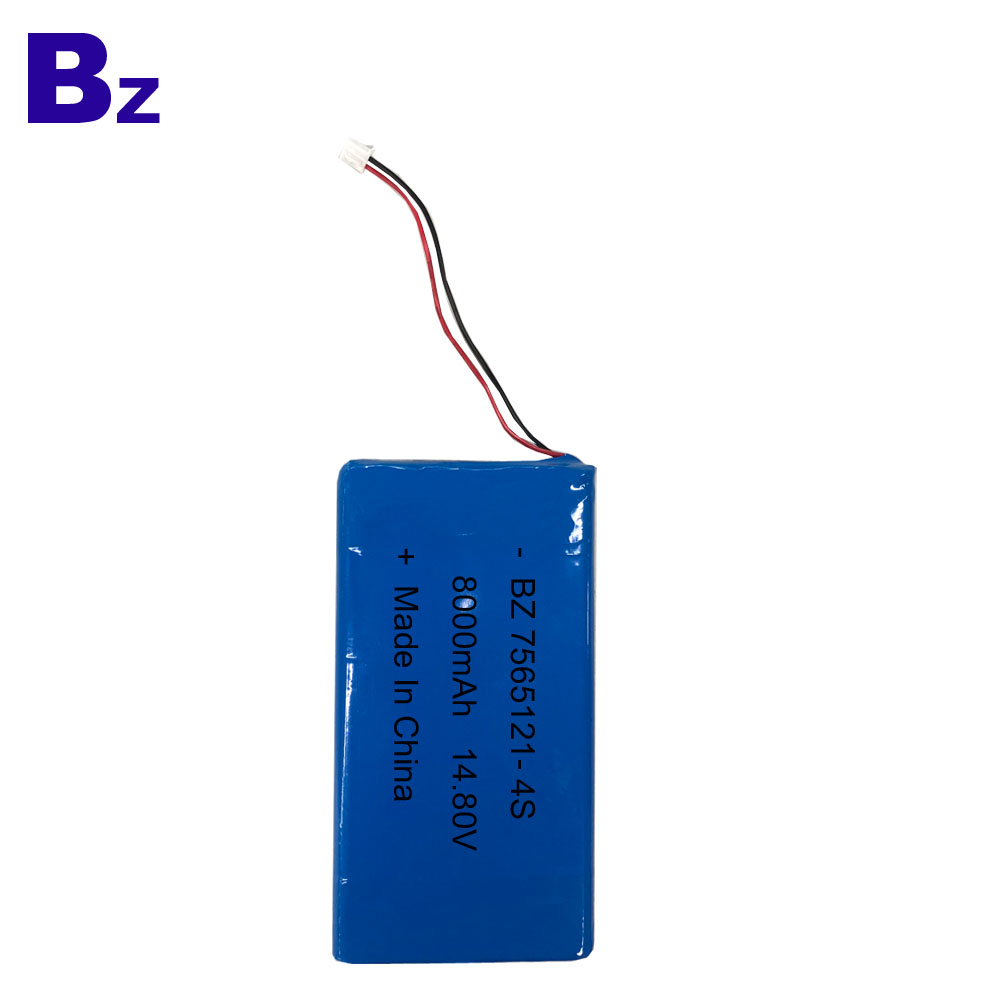

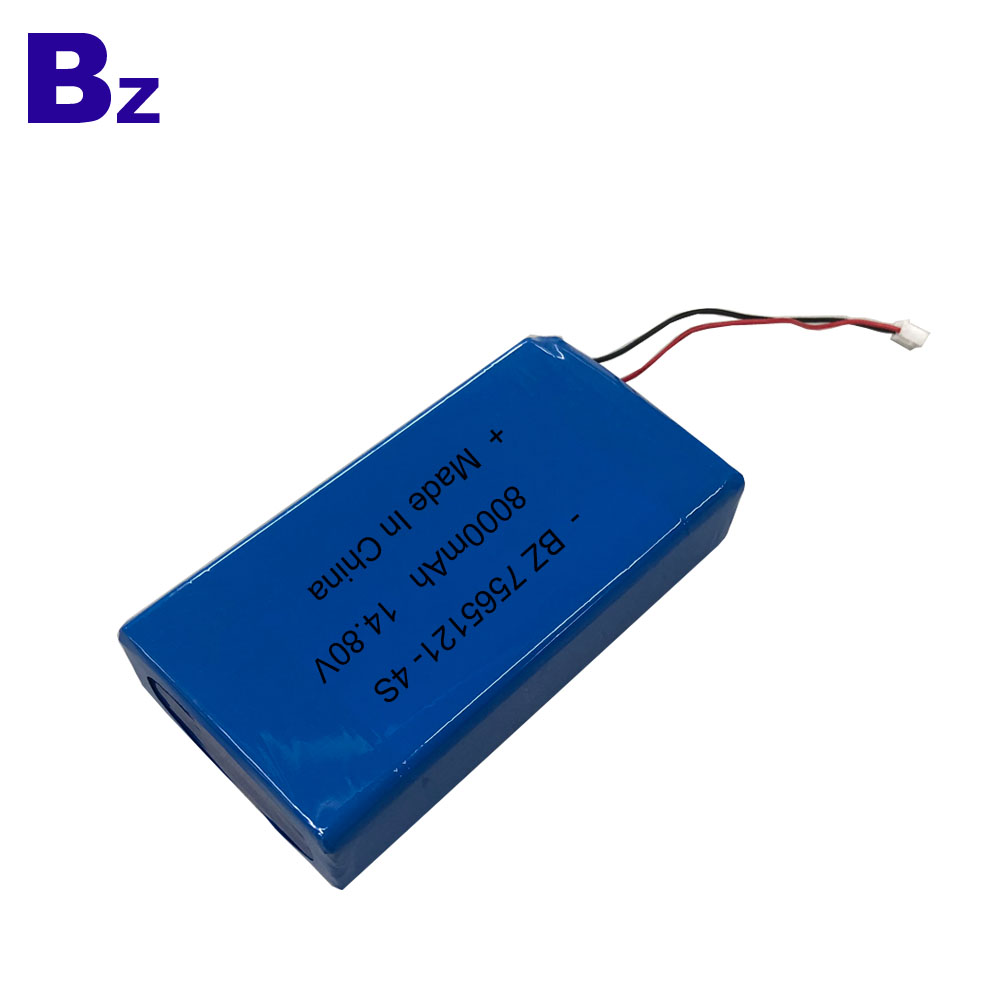

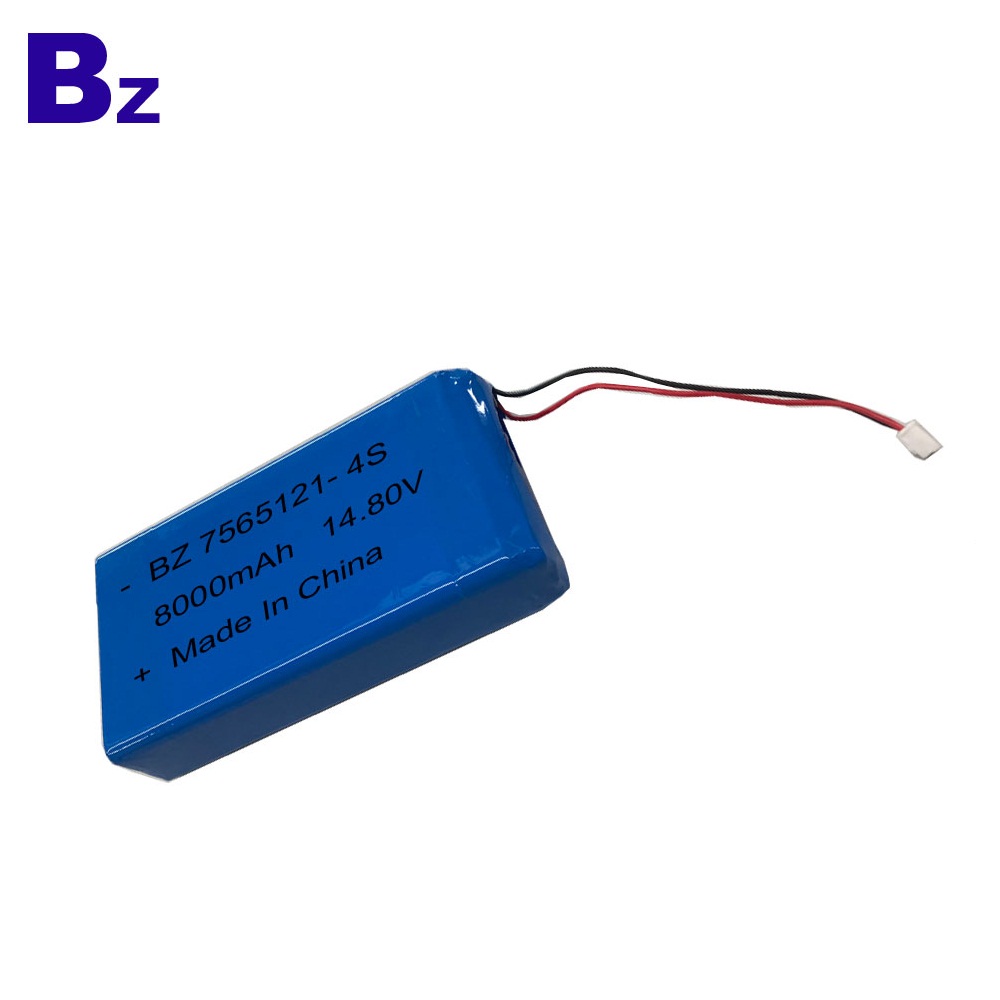

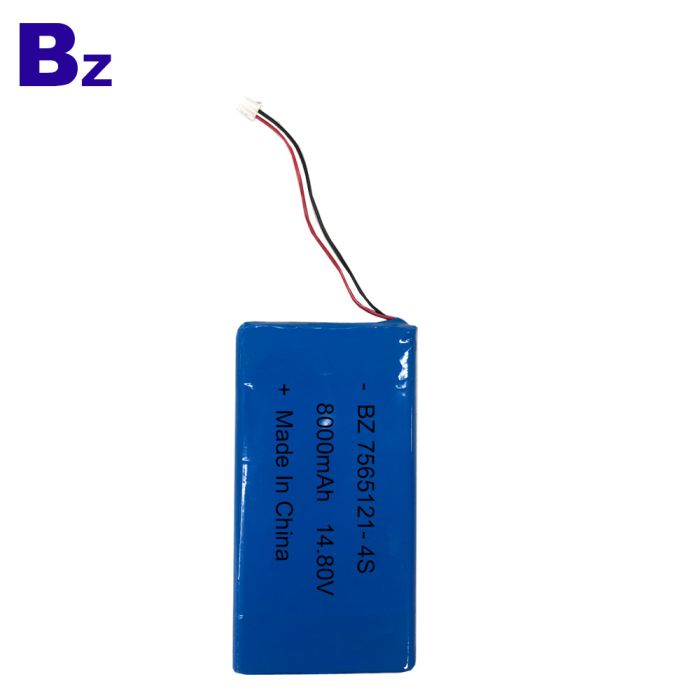

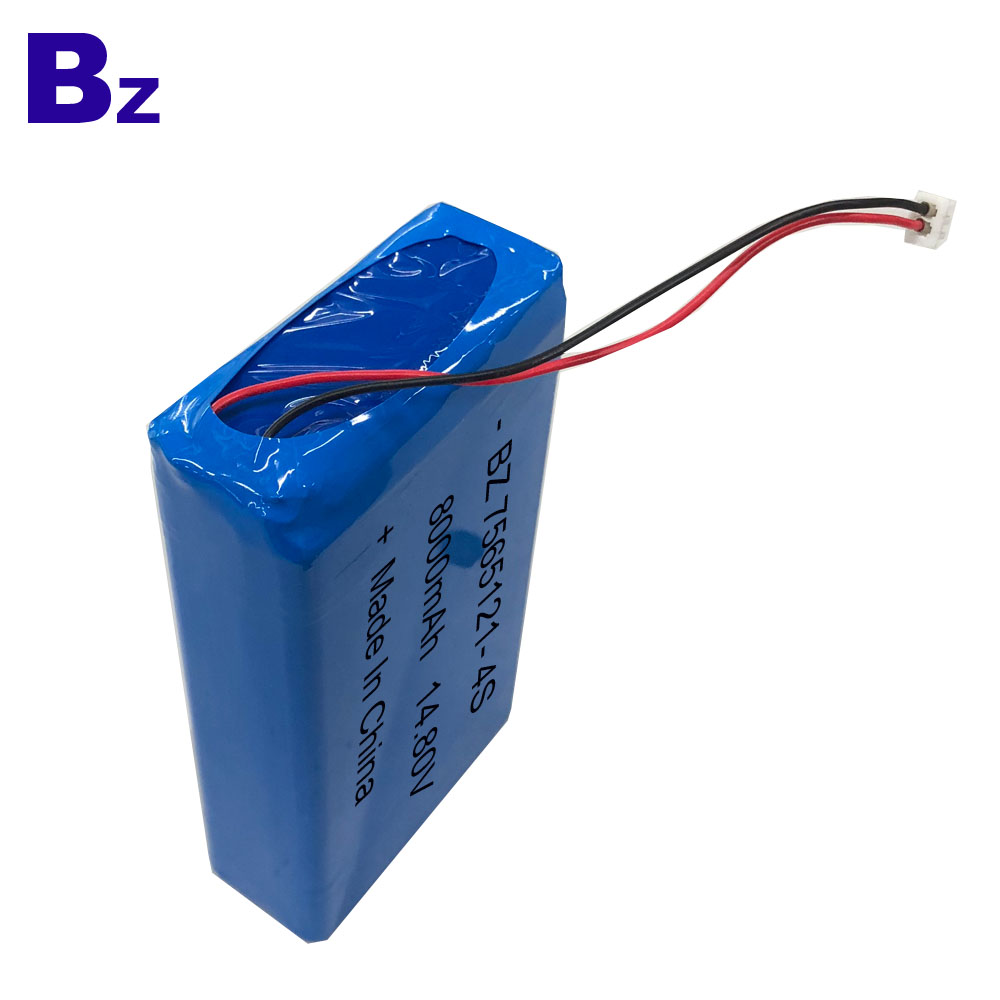

Customized Hot Selling Rechargeable Polymer Li-ion Battery BZ 7565121 4S 14.8V 8000mAh Lipo Battery Pack

$36.00
In stock
SKU
BZ 7565121 4S 14.8V 8000mAh

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  •     Place of Origin: Guangdong, China
        Brand Name: BZ
        Model Number: 7565121
        Type: Li-polymer
        Nominal Voltage: 14.8V
        Size: 30*65*125mm
        Nominal Capacity: 8000mAh
        Product name: BZ 7565121-4S Li-ion Battery
        Warranty: 1 Year
        Weight: 800g
        Cycle life: 500 Times
        Capacity: 8000mah
        Voltage: 14.8V
        Application: Medical Products
        Certificate: CE/RoHS/UN38.3/MSDS
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C

li-ion battery





7565121 4S 14.8V 8000mAh Lipo Battery Pack14.8V 8000mAh Lipo Battery Pack

14.8V 8000mAh Rechargeable Polymer Li-ion Battery

Customized Hot Selling Rechargeable Lipo Battery Pack

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

8100mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

8000mAh

2

Nominal Voltage

14.8V

Mean Operation Voltage

3

Voltage at end of

12.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

16.8±0.03V



5

Internal Impedance

≤20mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 16.8V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 12.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 16.8V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 12.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max125mm

Width: max65mm
Thickness: max30mm

Initial  Dimension

Discharge Rate Characteristicsli-ion battery
