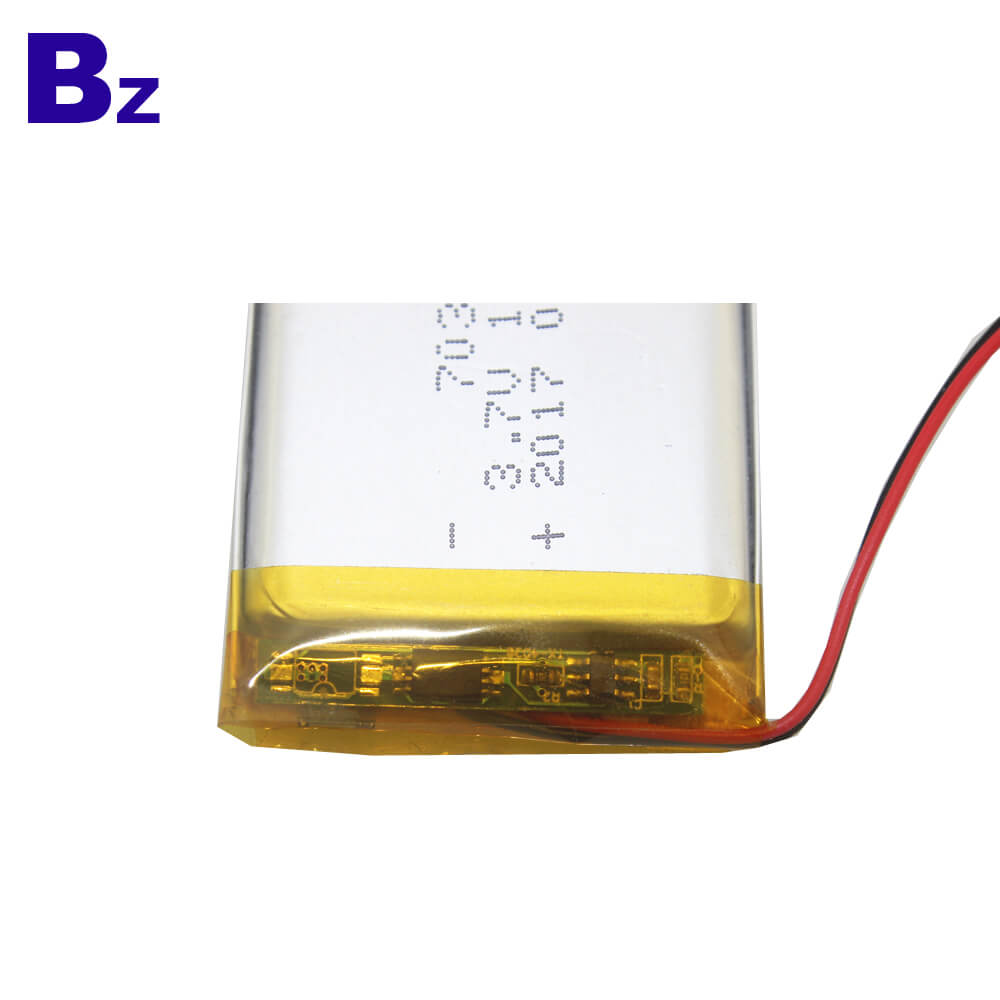

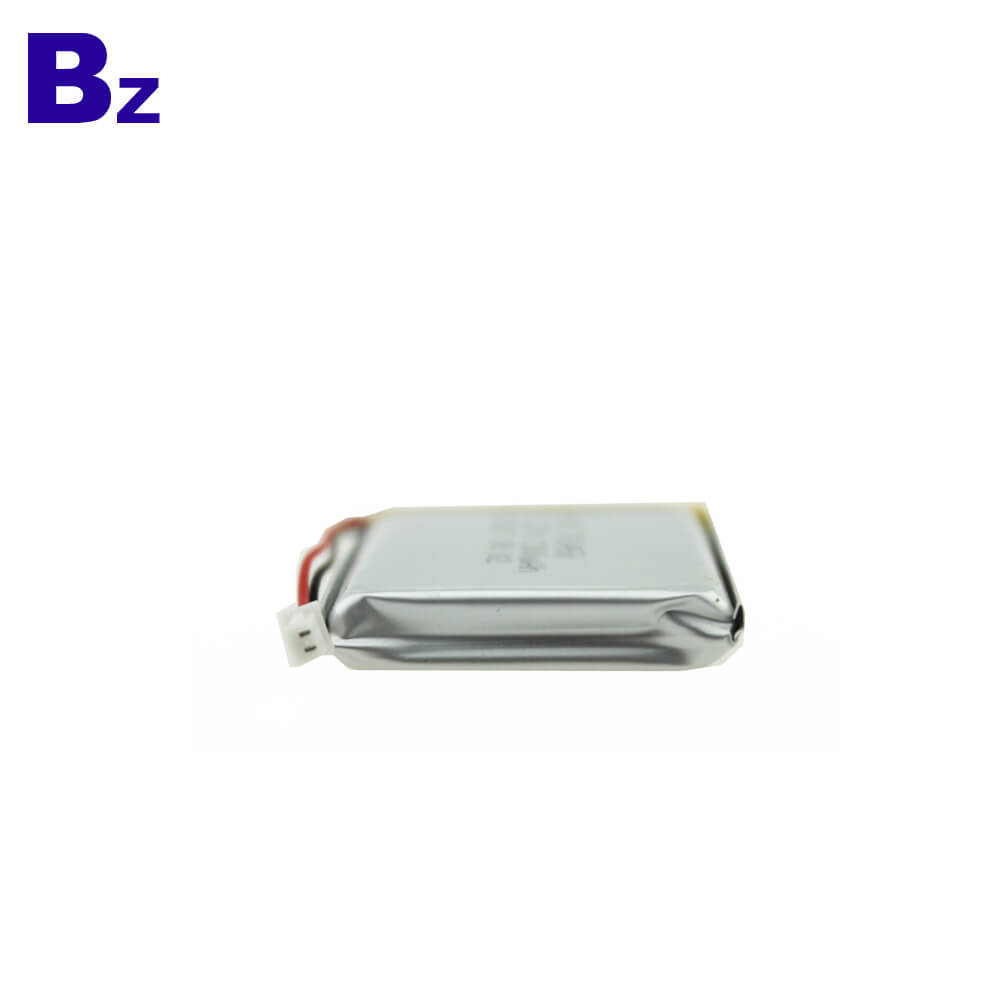

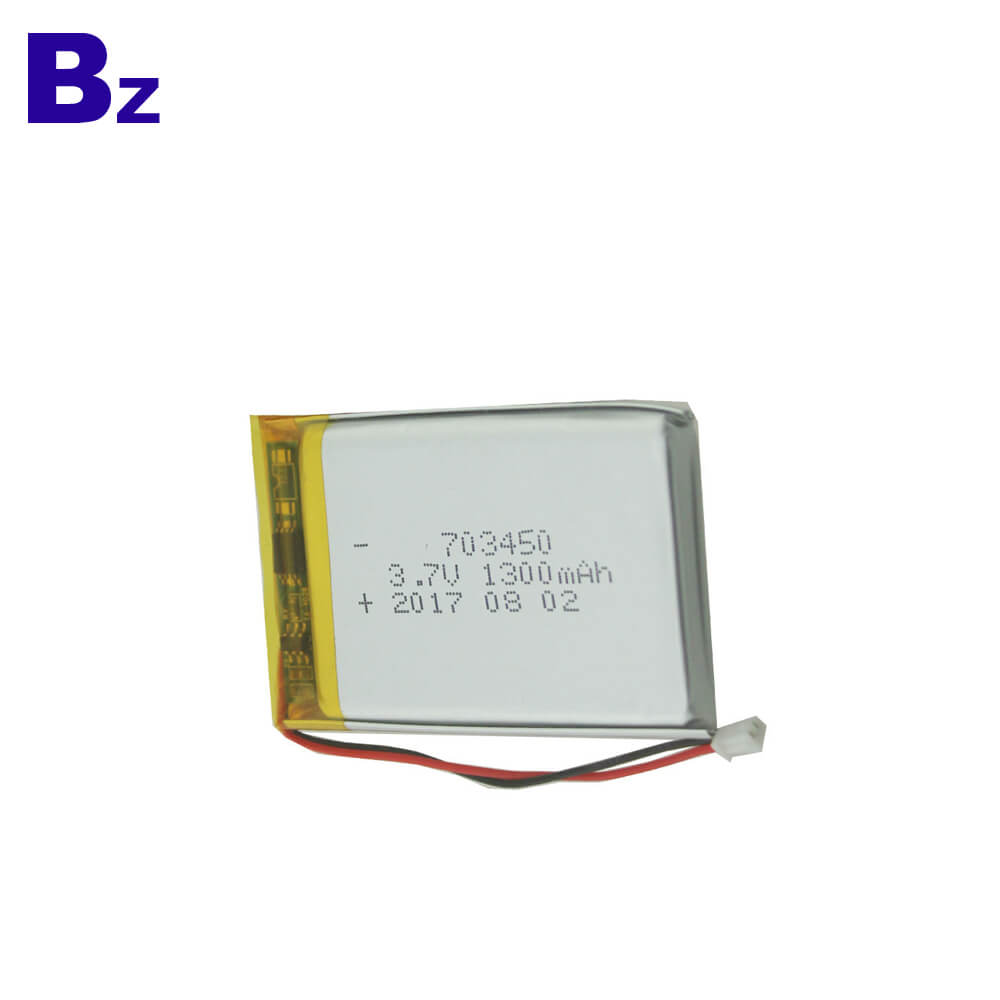

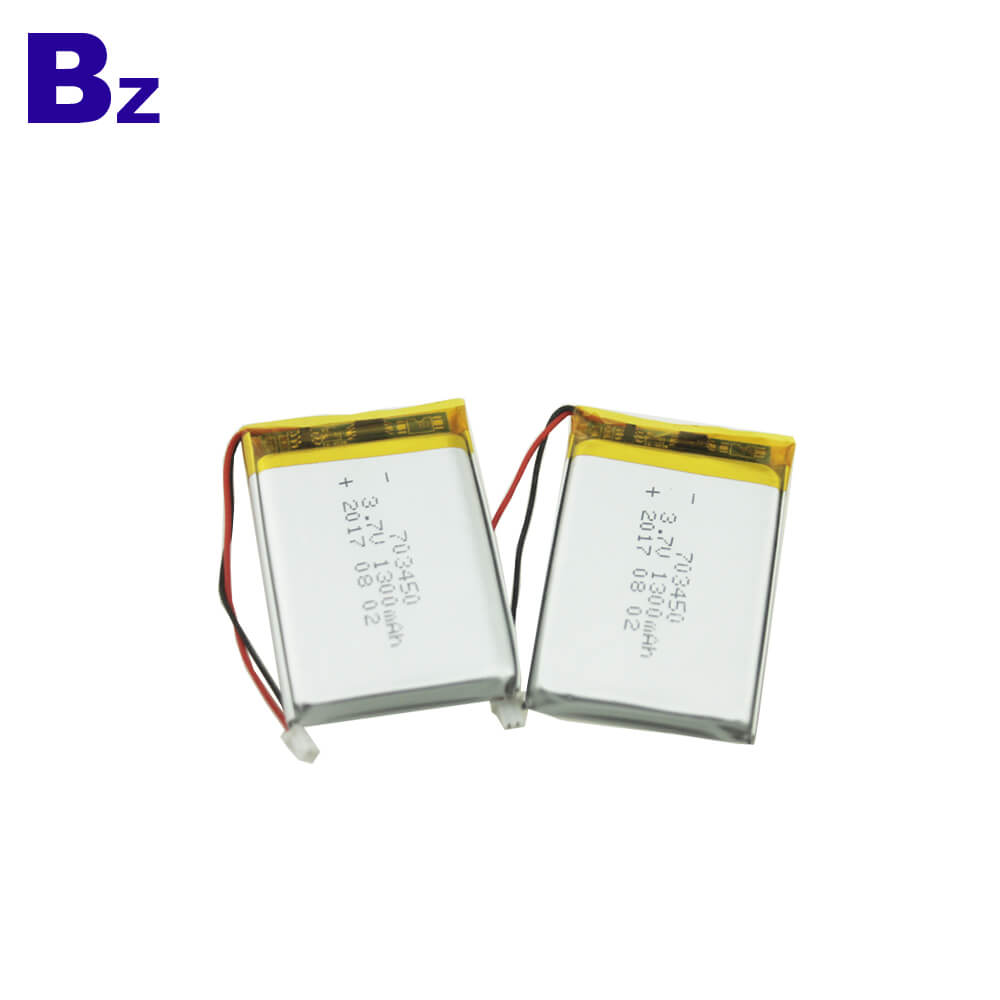

China Lithium Battery Supplier Wholesale Battery for Tracker Locator BZ 703450 1300mAh 3.7V Rechargeable LiPo Battery

$1.85
In stock
SKU
BZ 703450 1300mAh 3.7V

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

    Place of Origin: Guangdong, China
    Brand Name: BZ
    Model Number: 703450
    Type: Li-polymer
    Nominal Voltage: 3.7V
    Size: 7*34*52mm
    Nominal Capacity: 1300mAh
    Product name: 703450 Li-ion battery
    Warranty: 1 Year
    Weight: 37g
    Cycle life: 500 Times
    Capacity: 1300mAh
    Voltage: 3.7V
    Application: Battery for Tracker Locator
    Certificate: CE/RoHS/UN38.3/MSDS
    Payment: Paypal.TT.Escrow.Western Union
    Max charge current: 1C

li-ion battery





BZ 703450 1300mAh 3.7V LiPo Battery



703450 1300mAh 3.7V LiPo Battery



1300mAh Lipo Battery for Tracker Locator

Wholesale Rechargeable LiPo Battery 1300mAh

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

1350mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

1300mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤30mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max52mm

Width: max34mm
Thickness: max7mm

Initial  Dimension

Discharge Rate Characteristicsli-ion battery

lipo battery manufacturerLi-po battery Factory

18650 battery manufacturer

lipo battery shipping
