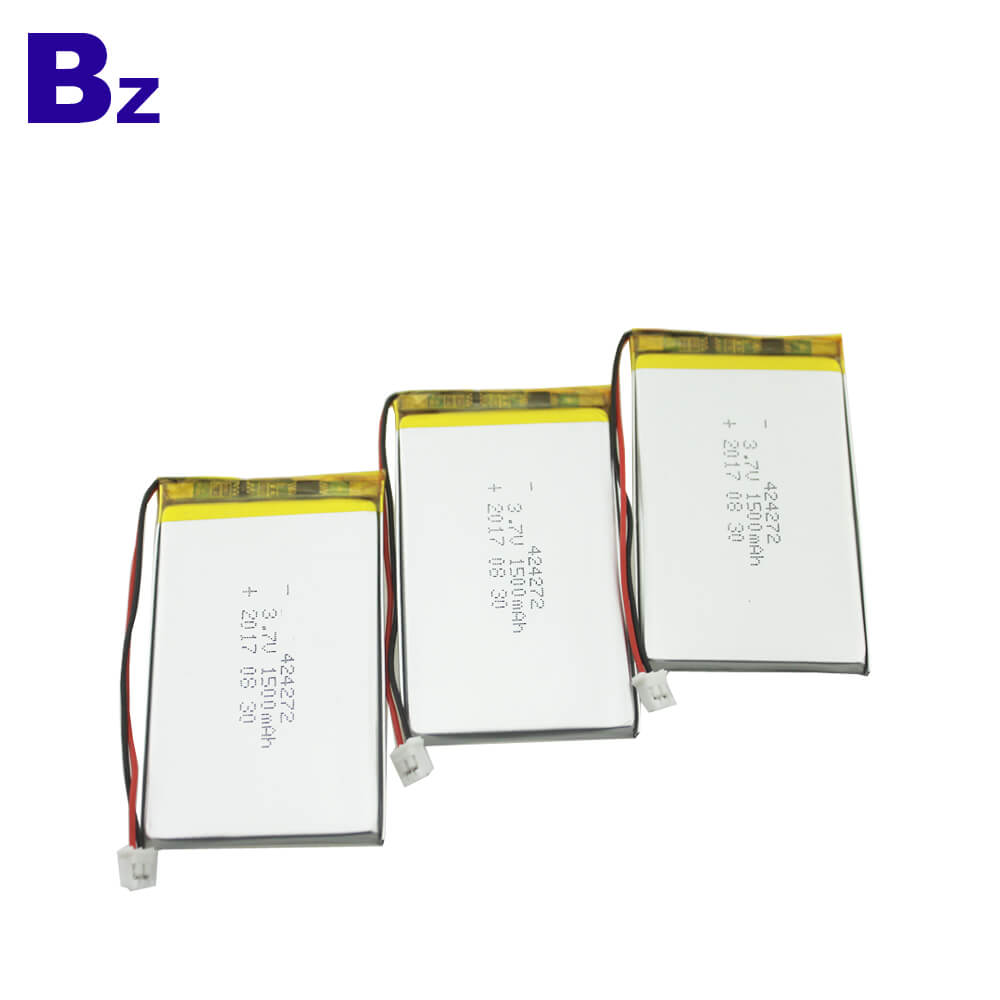

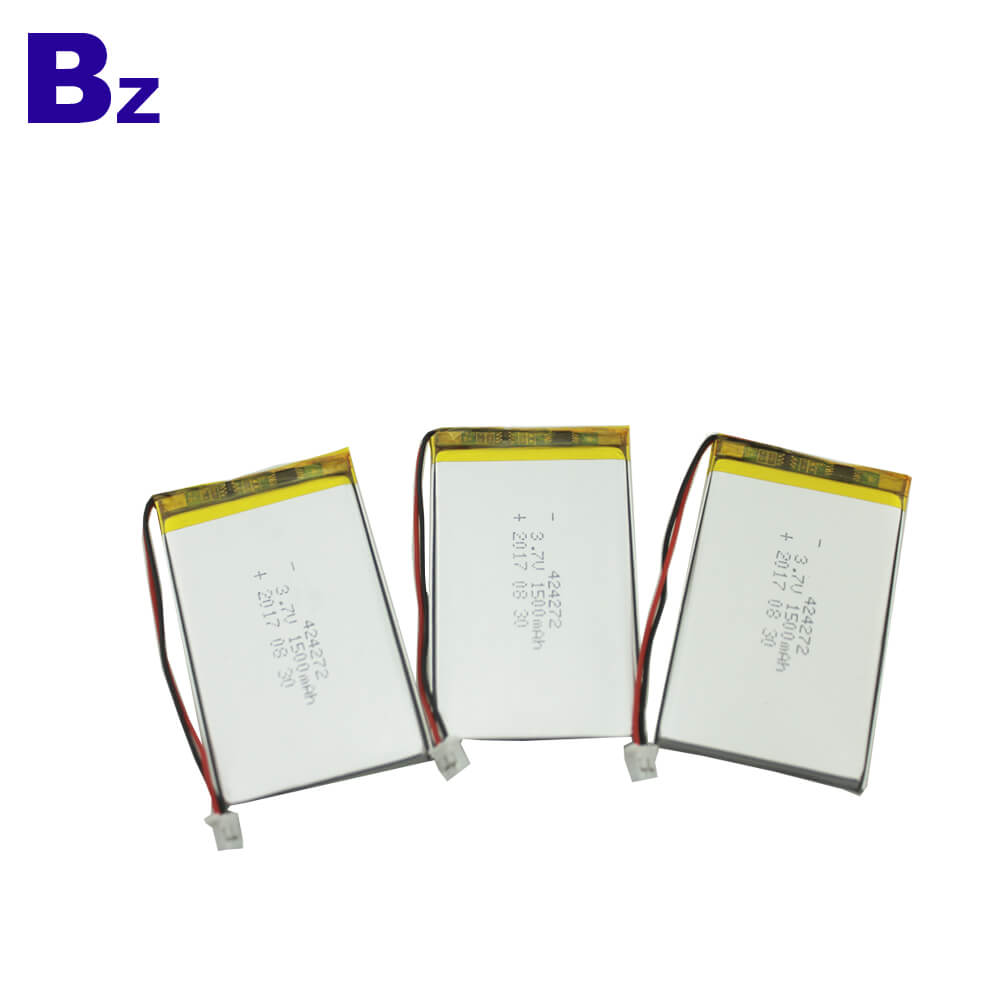

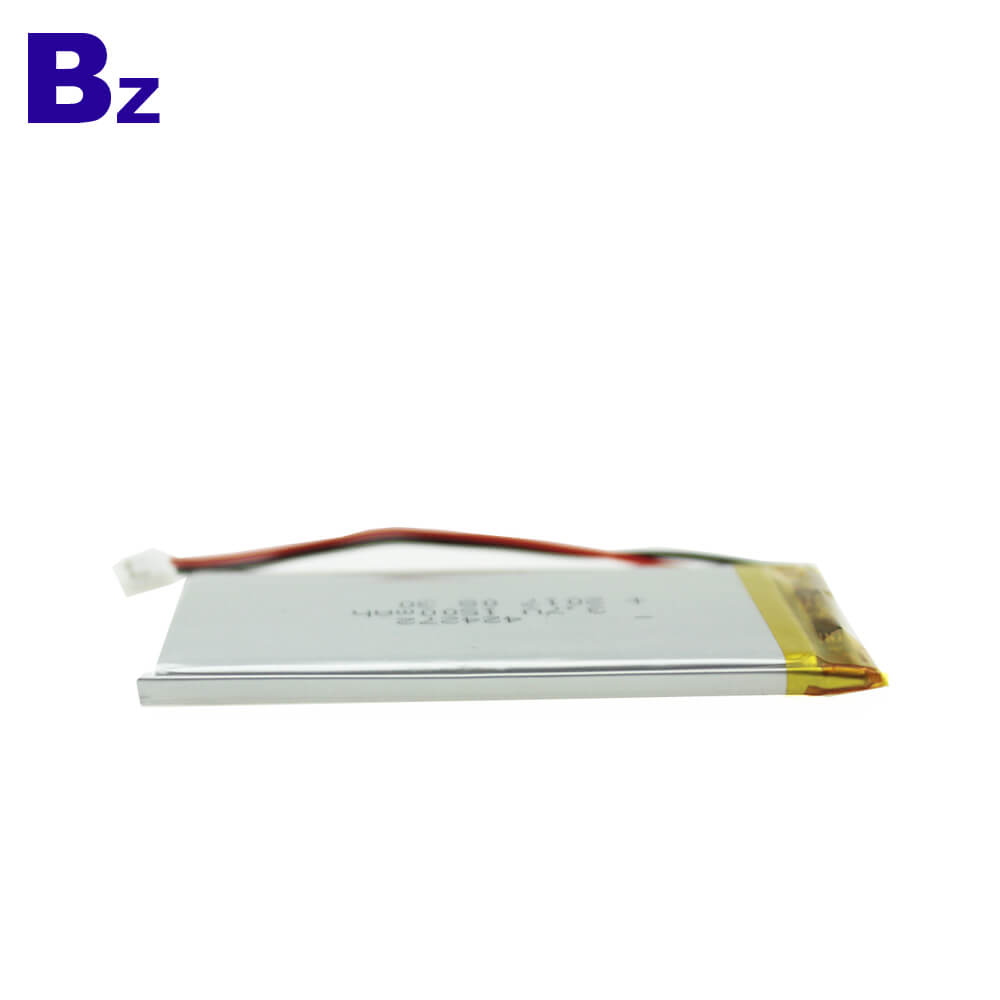

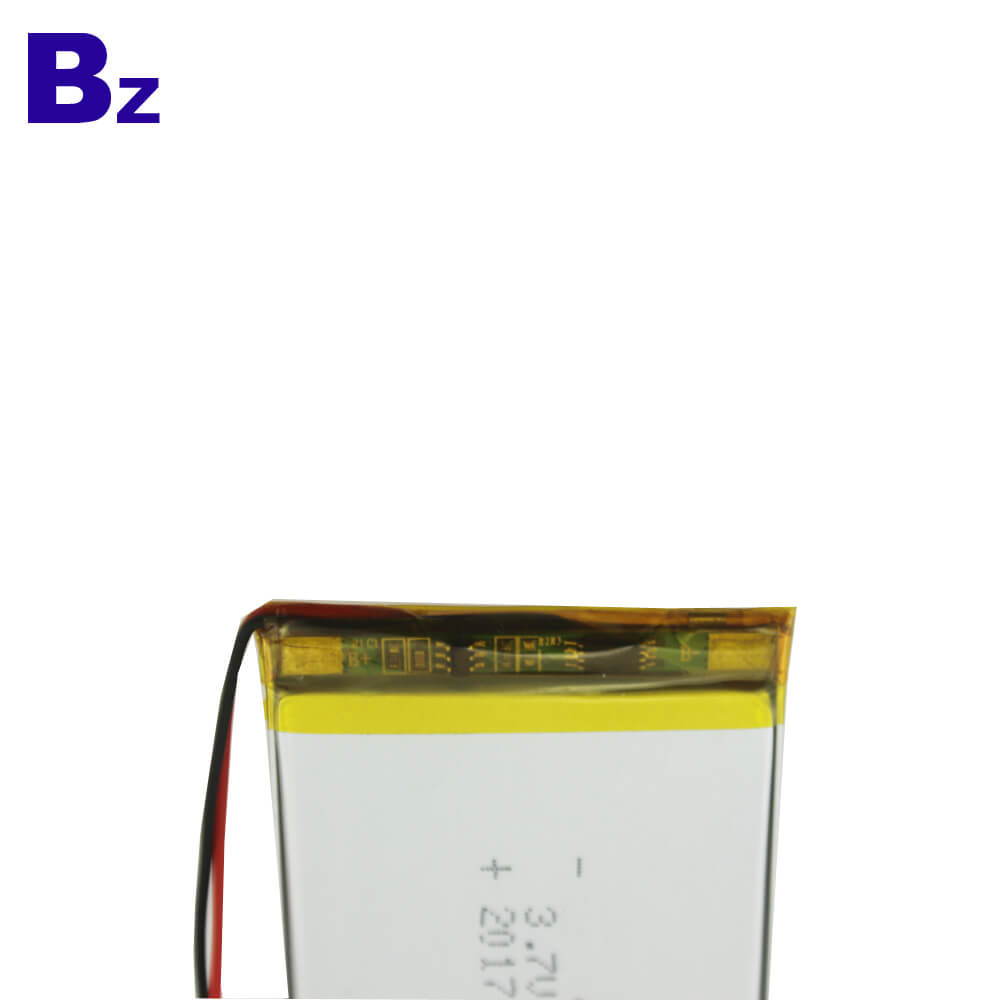

China Lithium Battery Manufacturer Wholesale Battery For GPS Tracking Device BZ 424272 1500mAh 3.7V Lipo Battery

$1.95
In stock
SKU
BZ 424272 1500mAh 3.7V

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

    Place of Origin: Guangdong, China
    Brand Name: BZ
    Model Number: 424272
    Type: Li-polymer
    Nominal Voltage: 3.7V
    Size: 4.2*42*75mm
    Nominal Capacity: 1500mAh
    Product name: 424272 Li-ion battery
    Warranty: 1 Year
    Weight: 40g
    Cycle life: 500 Times
    Capacity: 1500mah
    Voltage: 3.7V
    Application: Battery For GPS Tracking Device
    Certificate: CE/RoHS/UN38.3/MSDS
    Payment: Paypal.TT.Escrow.Western Union
    Max charge current: 1C

li-ion battery





BZ 424272 1500mAh 3.7V Lipo Battery



424272 1500mAh 3.7V Lipo Battery



1500mAh Battery For GPS Tracking Device

Lithium Battery Manufacturer Wholesale Battery 1500mAh

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

1550mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

1500mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤30mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max75mm

Width: max42mm
Thickness: max4.2mm

Initial  Dimension

Discharge Rate Characteristicsli-ion battery

lipo battery manufacturerLi-po battery Factory

18650 battery manufacturer

lipo battery shipping
